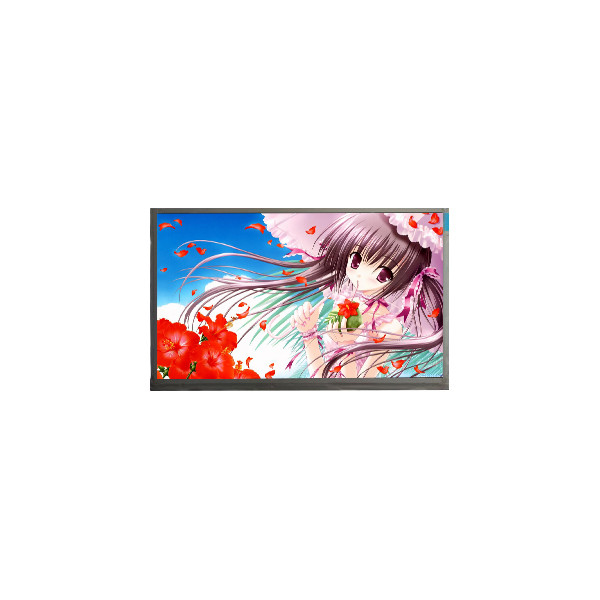

JJ070IA-18E 7.0 inch 800*480 LCD SCREEN display
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | JJ070IA-18E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | JJ070IA-18E | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 72 × 50.544 Mm (H×V) |
| Bezel Opening: | 155.4(W)×94.44(H) Mm | Outline (mm): | 162.8×104.84 (H×V×D) |
| Designed For: | Automotive Display | Color Depth: | 16.7M 68%NTSC |
| Backlight: | WLED, 20K Hours, No Driver | ||
Product Description
JJ070IA-18E 7.0 inch 800*480 LCD SCREEN display
JJ070IA-18E Product details :
| Brand | Innolux |
| Model P/N | JJ070IA-18E |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.4(W)×94.44(H) mm |
| Outline (mm) | 162.8×104.84 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 15/10 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 68%NTSC |
| Backlight | WLED, 20K hours, No Driver |
| Mass | 280g (Max.) |
| Used for | Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), FPC50 pins |
| Voltage Supply | 3.3/13.2/26.2/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
JJ070IA-18E Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your laptop, if you have no idea, please ask us freely.
Please give us your correct contact details so that you can receive the items as early as possible.
If you want us to wirte a low price to avoid the custom tax, please advise us, and you should afford the risk yourself.
JJ070IA-18E Payment:
ESCROW, TT, Western Union or Paypal is available for you.
ALI will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
JJ070IA-18E Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
JJ070IA-18E Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
JJ070IA-18E Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
JJ070IA-18E FAQ:
Q: Can you tested the JJ070IA-18E before shipping ?
A: Of course , our lcd panel JJ070IA-18E was Strictly tested before shipping.
Q: How to order JJ070IA-18E ?
A: We accept T/T , Paypal , western union .
Q: What happen if the lcd panel JJ070IA-18E received can't work ?
A:JJ070IA-18E was tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel .
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
