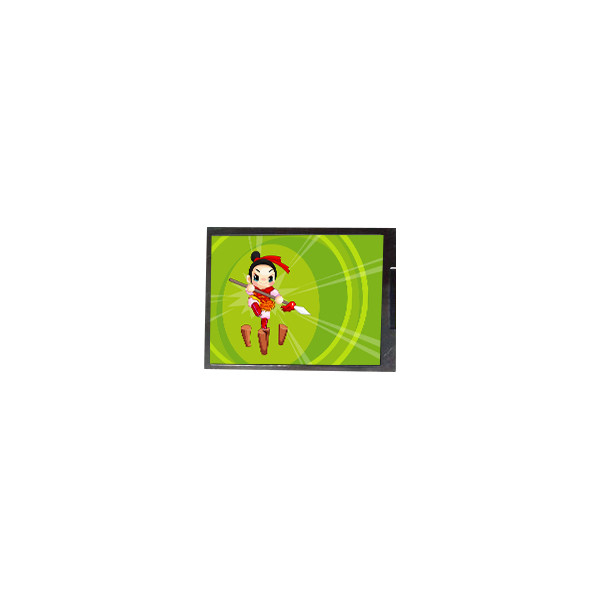

7.0 inch 800*480 TFT LCD Panel Display DE070IA-18B
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Model Number: | DE070IA-18B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | DE070IA-18B | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Outline Size: | 165.4(W)×107.24(H) Mm | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) | Designed For: | Automotive Display |
| Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI, 60 Pins FPC | Input Voltage: | 3.3V (Typ.) |
Product Description
7.0 inch 800*480 TFT LCD Panel Display DE070IA-18B
DE070IA-18B Product details :
| Brand | Innolux |
| Model P/N | DE070IA-18B |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | - |
| Outline Size | 165.4(W)×107.24(H) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 750 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | - |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 28 (Typ.)(G to G) |
| Display Colors | 16.7M 75%NTSC |
| Lamp Type | 6S2PWLED, 10K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 226g (Typ.) |
| Application | Automotive Display |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C; Vibration Level: 2.0G (19.6 m/s²) |
DE070IA-18B Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your laptop, if you have no idea, please ask us freely.
Please give us your correct contact details so that you can receive the items as early as possible.
If you want us to wirte a low price to avoid the custom tax, please advise us, and you should afford the risk yourself.
DE070IA-18B Payment:
ESCROW, TT, Western Union or Paypal is available for you.
ALI will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
DE070IA-18B Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
DE070IA-18B Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
DE070IA-18B FAQ:
Q: Can I pay my order of DE070IA-18B via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of DE070IA-18B ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of DE070IA-18B to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods DE070IA-18B ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
DE070IA-18B Shipping and Package :
