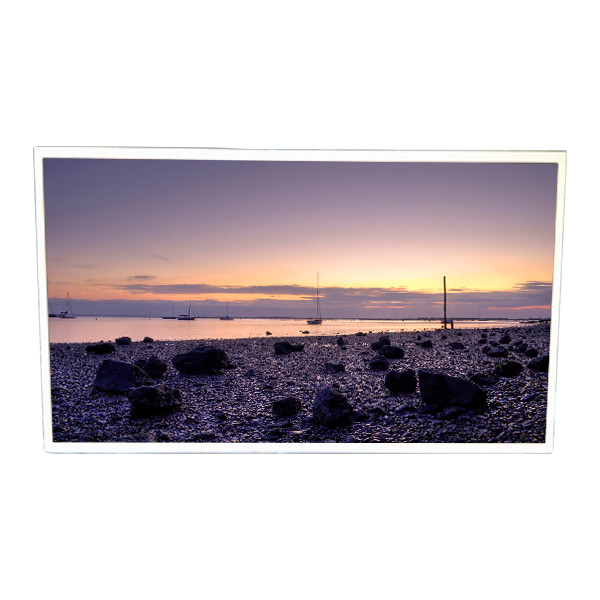

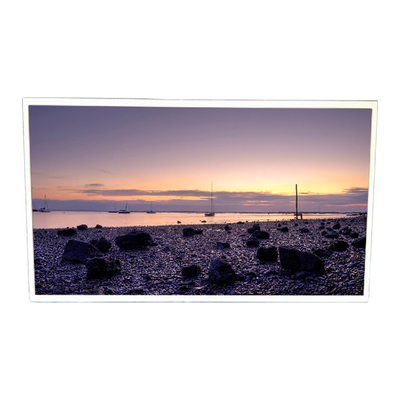

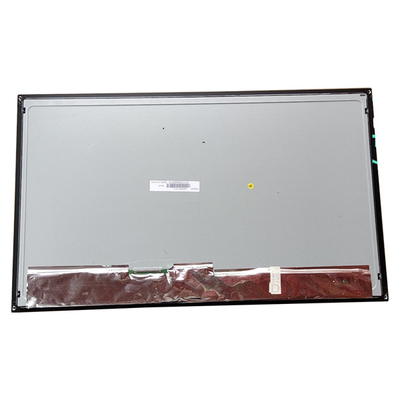

Original 21.5 inch 1920(RGB)×1080 LM215DT1A Desktop Monitor LCD Screen

Brand Name:	PANDA
Model Number:	LM215DT1A
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

LM215DT1A

Diagonal Size:

21.5"

Resolution:

1920(RGB)×1080, FHD 102PPI

Active Area:

476.64(W)×268.11(H) Mm

Bezel Opening:

479.84(W)×271.3(H) Mm

Outline Dim.:

495.6(H)×292.2(V)×10.8(D) Mm

Weight:

1.78Kgs (Typ.)

Designed For:

Desktop Monitor

Supply Ability:

100000 Unit/Units per Month

Product Description

Original 21.5 inch 1920(RGB)×1080 LM215DT1A Desktop Monitor LCD Screen

LM215DT1A Product details :

PANDA LCD Screen LM215DT1A
Panel Brand	PANDA
Panel Model	LM215DT1A
Panel Size	21.5"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1920(RGB)×1080, FHD, 102PPI
Pixel Format	RGB Vertical Stripe
Display Area	476.64(W)×268.11(H) mm
Bezel Opening	479.84(W)×271.3(H) mm
Outline Size	495.6(W)×292.2(H)×10.8(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	250 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (Typ.)(CR＞10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	5 (Typ.)(Tr+Td)
Display Colors	16.7M 72% NTSC
Lamp Type	15S4P WLED , 30K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.78Kgs (Typ.)
Application	Desktop Monitor
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Original 21.5 inch 1920(RGB)×1080 LM215DT1A Desktop Monitor LCD Screen

LM215DT1A Before your order:

To ensure that you are purchasing the correct replacement screen you’ll have to know a little information about your existing faulty panel.
If you have any doubts, feel free to contact us and we’ll help you in every way possible.

LM215DT1A Note:

If you have any question about compatibility, fitting, size, colour, images, installation etc, please feel free to contact us.

LM215DT1A Shipping and Package :

Original 21.5 inch 1920(RGB)×1080 LM215DT1A Desktop Monitor LCD Screen 0

LM215DT1A Package Damage:

If you find that the package has been damaged when you receive , please contact the courier or the local post office immediately to issue a package damage certificate. At the same time, please do not file a dispute before contacting us, because we have more experience to protect your benefits fully.

LM215DT1A Warranty:

1. Returns accepted during the 90 day warranty period.(The warranty label on the item must be intact)

2. Please send us a message or email before opening a return request.

3. If our product doesn't work, we'll do not charge your return shipping expenses.

4. Items returned damaged will receive a partial refund based on the condition of the item.

5. All returned items will be tested to ensure the item is original and in the same condition as shipped.

6:Don't tear any labels on my products. Otherwise, we refuse to acknowledge that the product comes from us.

LM215DT1A FAQ:

Q: Can I pay my goods LM215DT1A by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of LM215DT1A ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders for LM215DT1A ?

A: Of course!sample order is welcome !

Q: How to make payment for LM215DT1A ?

A: We accept T/T , Paypal , western union .
