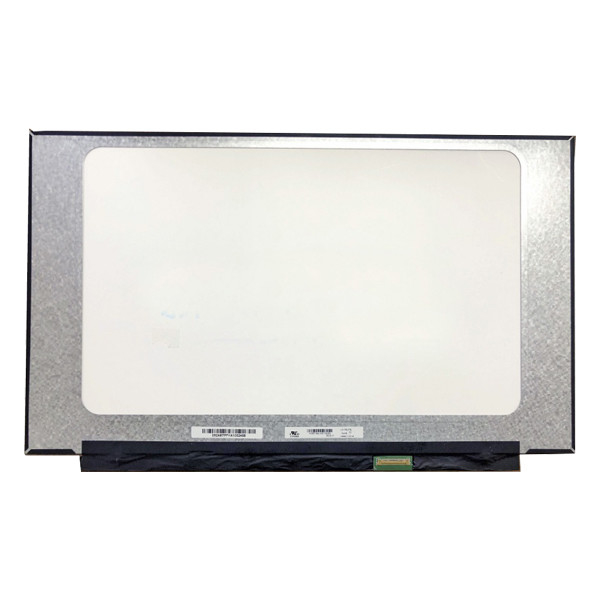

LM156LF9L02 1920*1080 30 pins LCD SCREEN
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LF9L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM156LF9L02 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Size: | 350.66(H)×216.25(V)×2.6(D) Mm | Lamp Type: | WLED , 15K Hours , With LED Driver |
| Display Colors: | 262K | Application: | Laptop |
Product Description
LM156LF9L02 1920*1080 30 pins LCD SCREEN
LM156LF9L02 Product details :
| PANDA LCD Screen LM156LF9L02 | |
| Brand | PANDA |
| Model | LM156LF9L02 |
| Diagonal Size | 15.6 inch |
| Type | Oxide TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Outline Dim. | 350.66(H)×216.25(V)×2.6(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 262K |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM156LF9L02 1920*1080 30 pins LCD SCREEN | |
LM156LF9L02 Kindly Reminder :
1.If the number of the need for more, please contact us, we will help you to arrange more quantity
2.we ship it by DHL /Fedex /UPS /EMS to all the customer,it arrive you in 3-4 days,and some country may be need to pay some duty fees, It depend on the receiver’s country policy.
3.If you need me to ship it by low fees courier and not custom fees,you can inform us so that we can help you choose to ship it by HK post,but it need to arrive you in 15-20 day.
4.we warranty our products for you.
LM156LF9L02 Shipment:
When you place an order,please choose a shipping method and pay for the order including the shipping fee,We will send the items within X days once your payment is completed.
We do mot guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries,which may affect how quickly your product is inspected.Please note that buyers are responsible for all additional customs fees,brokerage fees,duties,and taxes for refused shipments.
The shipping cost does not include any import taxes,and buyers are responsible for customs duties.
LM156LF9L02 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
LM156LF9L02 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
LM156LF9L02 FAQ:
Q1: Are you manufactory or trade company?
A: Shenzhen Zhiyan Optoelectronics Co., Ltd. is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q2:What payment methods you support ?
A: We accept the Trade Assurance Order on alibaba , or T/T , PAYPAL and WESTERN UNION .
Q3:What express service can I choose ?
A:We cooperate with many express companies , for example , FEDEX , DHL , TNT , EMS and China Post Air Mail.
Q4: Could you test my order before shipping ?
A:Yeah , Don't worry , All the order will be tested ok before shippment
LM156LF9L02 Shipping and Package :
