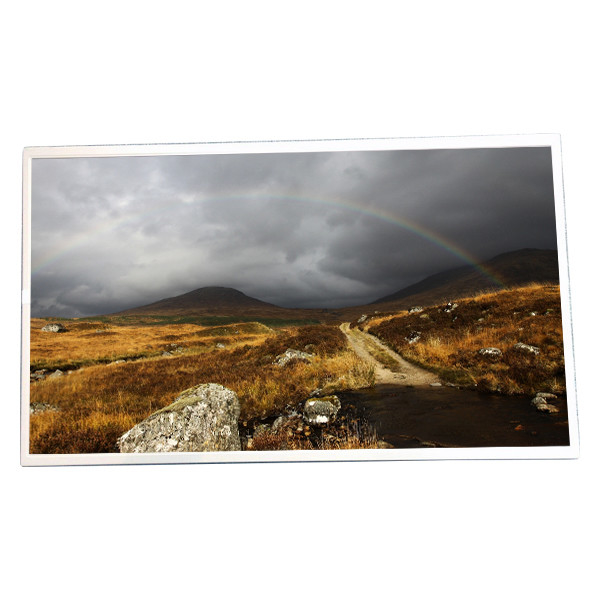

21.5 inch 1920x1080 LM215DT8A Touch Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM215DT8A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM215DT8A | Panel Size: | 21.5 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 102PPI | Display Area: | 476.64(W)×268.11(H) Mm |
| Outline Size: | 495.6(W)×292.2(H)×10.8(D) Mm | Lamp Type: | 15S4P WLED , 30K Hours , Without Driver |
| Display Colors: | 16.7M 72% NTSC | Application: | Desktop Monitor |
Product Description
21.5 inch 1920x1080 LM215DT8A Touch Screen Display
LM215DT8A Product details :
| PANDA LCD Screen LM215DT8A | |
| Panel Brand | PANDA |
| Panel Model | LM215DT8A |
| Panel Size |
21.5 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 102PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 476.64(W)×268.11(H) mm |
| Bezel Opening | 479.84(W)×271.3(H) mm |
| Outline Size | 495.6(W)×292.2(H)×10.8(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 15S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.75/1.88Kgs (Typ.)(0.5/0.7mm glass) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 21.5 inch 1920x1080 LM215DT8A Touch Screen Display | |
