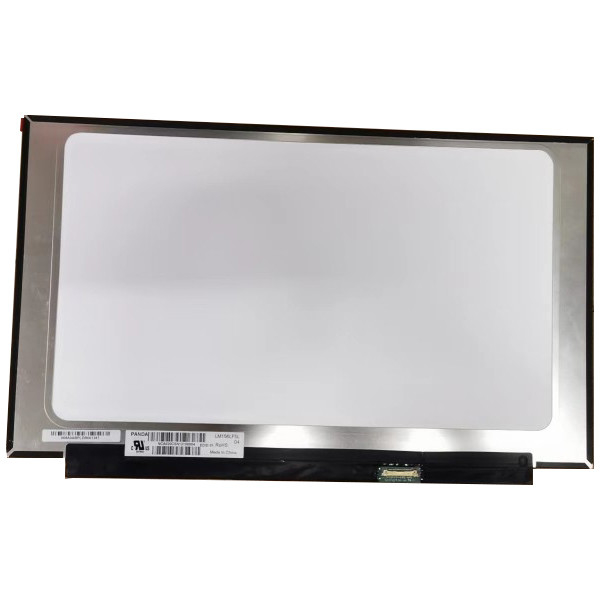

Laptop Display 15.6 30 pin full hd ips lcd panel LM156LF5L04
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LF5L04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM156LF5L04 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16 × 193.59 (H×V) |
| Outline Size: | 350.66 × 216.15 × 3.2 (H×V×D) | Brightness: | 250 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Application: | Laptop |
Product Description
Laptop Display 15.6 30 pin full hd ips lcd panel LM156LF5L04
LM156LF5L04 Product details :
| PANDA LCD Screen LM156LF5L04 (NCP0046) | |
| Manufacturer | PANDA |
| Model Name | LM156LF5L04 (NCP0046) |
| Screen Size | 15.6 inch |
| Screen Type | LCM, Oxide TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 216.15 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Tf) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Color Depth | 16.7M 47% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Laptop Display 15.6 30 pin full hd ips lcd panel LM156LF5L04 | |
LM156LF5L04 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
LM156LF5L04 Shipment:
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
LM156LF5L04 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
LM156LF5L04 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
LM156LF5L04 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
LM156LF5L04 Excellent After-sale Service:
180 days Warranty
Your inquiry will be replied within 1 hours
You will be support by Passion & Professinal Sales Team and Sctrict QC Team
LM156LF5L04 FAQ:
Q1:Are the website prices on Alibaba real price ?
A1:No, It is just the estimated price.normally our price is negotiable according your order quantities.
Q2:Are your prices alway the same?
A2:No. These quotations are all subject to the fluctuation of the market. All our quotations to you are only available within 7 days. So once you accept our price, pls place order asap.
Q3:What's the condition of online products?
A3:All our products are original OEM , Part of the product are brand new, and Grade A+.
Q4: How did you test the item?
A4: Our QC team tests the item via real phone / tablet pc / laptop device or professional tester. 100% test and for sure it is work.
Q5: How should I choose the difference quality goods?
A5: We will recommend you the quality of goods according to your market, business, target prices etc.
Q6: Is this screen factory original for laptop ? is same as my original screen for laptop ?
A6: as long as the specifications of LCD screen for laptop , LCD screen of different brands of many types are common, and usually use a laptop LCD screen is not aware of a model, is more factories when purchasing brand and may be Chinese, AUO, CMO, LG. for example, just like the car tires and other accessories like a brand is not specified
LM156LF5L04 Shipping and Package :
