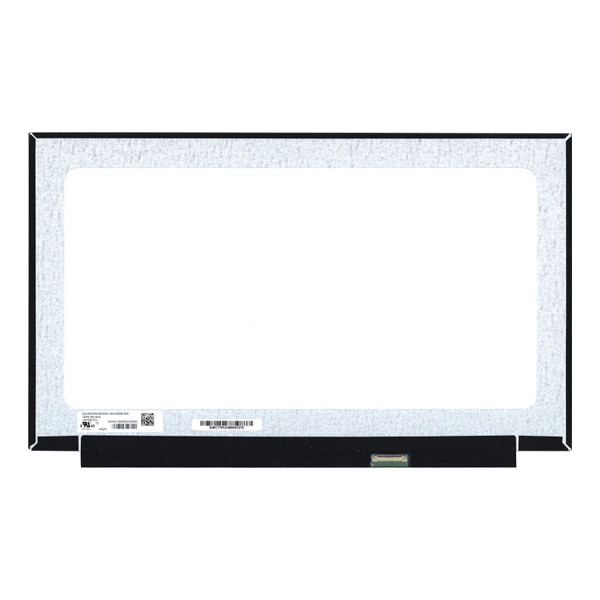

15.6 Inch LM156LFCL12 LCD Screen Non-Touch 19201080 60Hz Ori eDP 30Pin
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LFCL12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM156LFCL12 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Size: | 350.66(W)×216.69(H)×3.2(D) Mm | Brightness: | 220 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Application: | Laptop |
Product Description
15.6 Inch LM156LFCL12 LCD Screen Non-Touch 19201080 60Hz Ori eDP 30Pin
LM156LFCL12 Product details :
| PANDA LCD Screen LM156LFCL12 (NCP006E) | |
| Brand | PANDA |
| Model | LM156LFCL12 (NCP006E) |
| Diagonal Size | 15.6 inch |
| Type | Oxide TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Outline Dim. | 350.66(H)×216.69(V)×3.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 15.6 Inch LM156LFCL12 LCD Screen Non-Touch 19201080 60Hz Ori eDP 30Pin | |
LM156LFCL12 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
LM156LFCL12 Shipment:
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
LM156LFCL12 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
LM156LFCL12 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
LM156LFCL12 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
LM156LFCL12 Excellent After-sale Service:
180 days Warranty
Your inquiry will be replied within 1 hours
You will be support by Passion & Professinal Sales Team and Sctrict QC Team
LM156LFCL12 FAQ:
Q1: Are you manufactory or trade company?
A: Shenzhen Zhiyan Optoelectronics Co., Ltd. is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q2:What payment methods you support ?
A: We accept the Trade Assurance Order on alibaba , or T/T , PAYPAL and WESTERN UNION .
Q3:What express service can I choose ?
A:We cooperate with many express companies , for example , FEDEX , DHL , TNT , EMS and China Post Air Mail.
Q4: Could you test my order before shipping ?
A:Yeah , Don't worry , All the order will be tested ok before shippment
LM156LFCL12 Shipping and Package :
