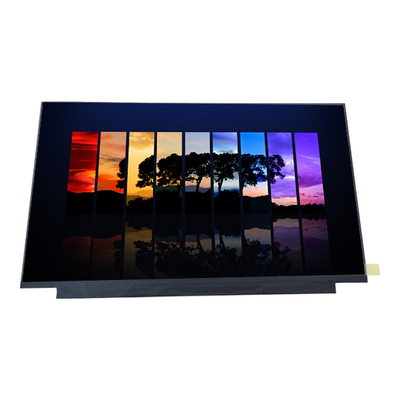

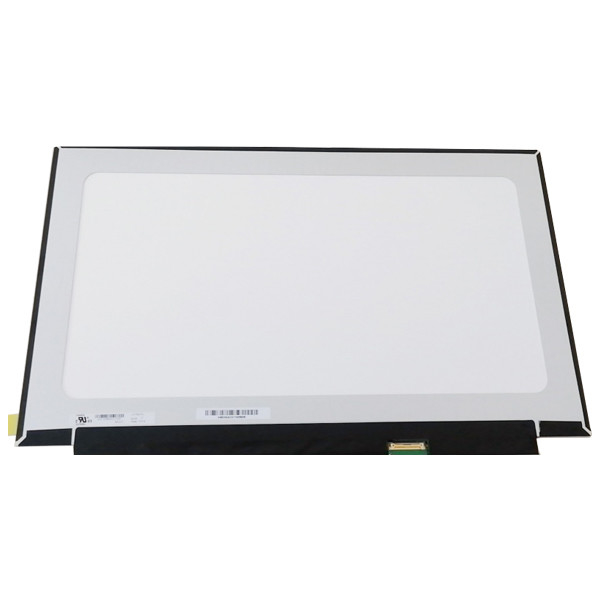

LM156LFCL1315.6 slim EDP 30pin 1920*1080 IPS panel nano edge
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LFCL13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM156LFCL13 | Panel Size: | 15.6 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 141PPI | Display Area: | 344.16(W)×193.59(H) Mm |
| Outline Size: | 350.66(W)×216.69(H)×3.2(D) Mm | Brightness: | 220 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Application: | Laptop |
Product Description
LM156LFCL1315.6 slim EDP 30pin 1920*1080 IPS panel nano edge
LM156LFCL13 Product details :
| PANDA LCD Screen LM156LFCL13 (NCP0063) | |
| Panel Brand | PANDA |
| Panel Model | LM156LFCL13 (NCP0063) |
| Panel Size | 15.6" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 350.66(W)×216.69(H)×3.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K 47% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LM156LFCL1315.6 slim EDP 30pin 1920*1080 IPS panel nano edge | |
LM156LFCL13 Our Services:
1. Reply emails within 24 hours.
2. Good service after sold.
3. Fast shipping, goods to be sent out within 3 working days after payment.
4. Check one by one to make sure each one is A grade, without scratches or other problems.
5. Testing before shipment.
LM156LFCL13 Shipment:
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
LM156LFCL13 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
LM156LFCL13 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
LM156LFCL13 Return & Replacement/Exchange policy:
1.If you have found any problems about our item after you tested it , pls contact us and we will reply ASAP.
2.Items can be returned for exchange within 10 days counting from the day you receive merchandise. Goods must be unworn and in original packaging.
3.Items returned will be tested by our technician, if it is true,we will refund or replace the defective merchandise,if not, the return policy will be unavailable for the buyer.
LM156LFCL13 Product Description:
1: Products: We have all the spare parts and accessories for all the models of mobile phones,laptops, and tablet PC.
2 : Price can be negotiable based on quantity; delivery terms;
3 : Samples: We can offer samples ,but we kindly ask you pay for samples and the freight.
4: Quality guarantee: We will inspect the appearance and test functions of all of our items before shipping, so it is very important for our customers to let professional operators test and install them.
5: Package: All the items will be packed very well to avoid damage.
6: After-service: We provide best after-service, any problem will be solved successfully and smoothly, 100% satisfaction guaranteed.
LM156LFCL13 FAQ:
1.When will my order ship?
All orders are shipped within 2-4 working days.
2. What's the quality level?
High quality with Grade A
3. How about your quality control?
Checking the surface to avoid any physical damage and scratches. Testing the LCD Screen& Digitizer strictly under different pictures to see if there are any dead pixes, dust or spots.Then send your goods.
4. What is MOQ?
Normally 10pcs per item for regular orders as MOQ, sample order is acceptable before the bulk order.
LM156LFCL13 Shipping and Package :
