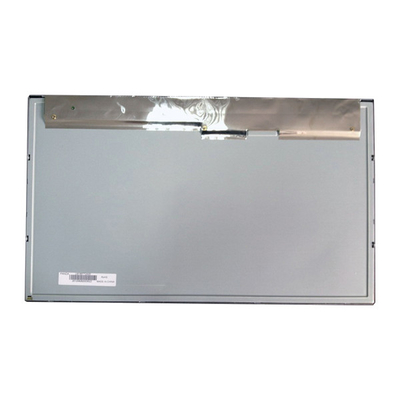

18.5 inch 1366x768 LM185TT2A LCD Monitors Touch Screen Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM185TT2A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM185TT2A | Panel Size: | 18.5 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 [WXGA] 84PPI | Display Area: | 409.8(H)×230.4(V) Mm |
| Outline Size: | 430.37(H)×254.6(V)×11(D) Mm | Bezel Area: | 413.4(H)×234.0(V) Mm |
| Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) | Application: | Desktop Monitor |
Product Description
18.5 inch 1366x768 LM185TT2A LCD Monitors Touch Screen Display
LM185TT2A Product details :
| PANDA LCD Screen LM185TT2A | |
| Brand | PANDA |
| Model | LM185TT2A |
| Diagonal Size | 18.5 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1366(RGB)×768 [WXGA] 84PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 409.8(H)×230.4(V) mm |
| Outline Dim. | 430.37(H)×254.6(V)×11(D) mm |
| Bezel Area | 413.4(H)×234.0(V) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED [10S4P] , 30K hours , W/O Driver |
| Weight | 1.35Kgs (Typ.) |
| Designed For | Desktop Monitor |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 18.5 inch 1366x768 LM185TT2A LCD Monitors Touch Screen Display | |
