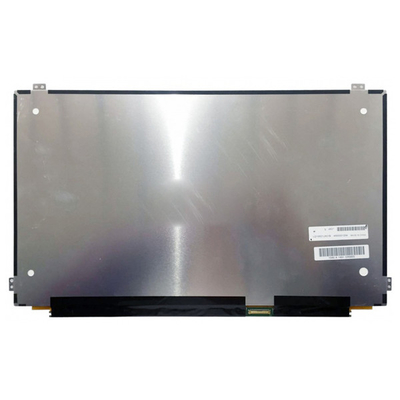

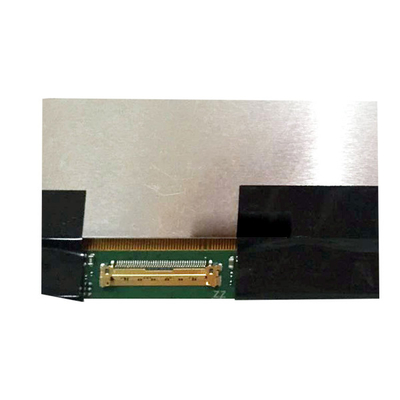

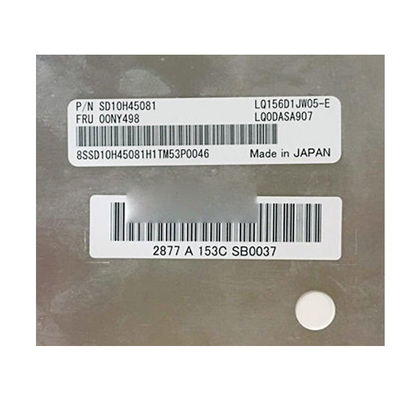

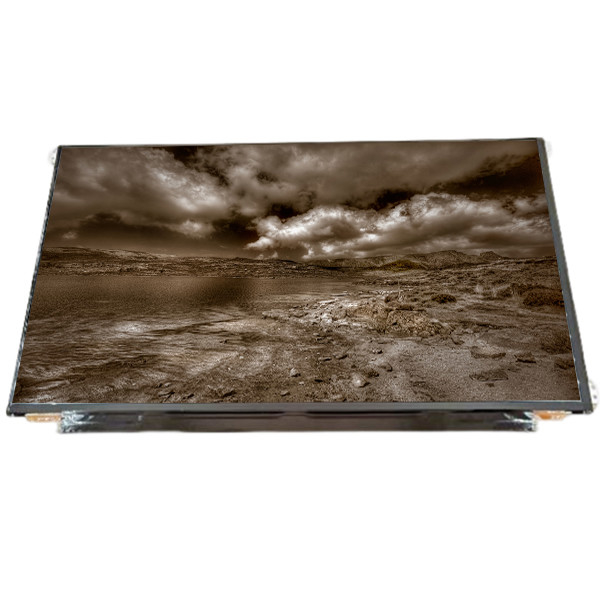

RGB Vertical Stripe 15.6 inch 4K LED LCD Screen display panel LQ156D1JW05-E UHD 3480x2160
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Sharp |
| Model Number: | LQ156D1JW05-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LQ156D1JW05-E | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160(UHD) 282PPI | Display Area: | 345.6 × 194.4 (H×V) Mm |
| Best View On: | Symmetry | Number Of Colors: | 16.7M |
| Viewing Angle: | 89/89/89/89 (Typ.) (CR≥10) | Application: | Laptop |
Product Description
RGB Vertical Stripe 15.6 inch 4K LED LCD Screen display panel LQ156D1JW05-E UHD 3480x2160
LQ156D1JW05-E Product details :
| Sharp LCD Screen LQ156D1JW05-E | |
| Panel Brand | Sharp |
| Panel Model | LQ156D1JW05-E |
| Screen size | 15.6 inche |
| Panel Type | LCM, Oxide TFT-LCD |
| Resolution | 3840(RGB)×2160(UHD) 282PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 345.6 × 194.4 (H×V) mm |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmission) |
| Viewing Angle | 89/89/89/89 (Typ.) (CR≥10) |
| Best View on | Symmetry |
| Reaction time | 25 (Typ.)(Tr+Td) ms |
| Optical mode | IPS, Normally Black, Transmissive |
| Number of colors | 16.7M |
| Backlight type | WLED , with LED driver |
| Refresh rate | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal | eDP (4 Lanes) , 40 pins , terminal |
| Drive voltage | 3.3V (Typ.) |
| Working | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| RGB Vertical Stripe 15.6 inch 4K LED LCD Screen display panel LQ156D1JW05-E UHD 3480x2160 | |
