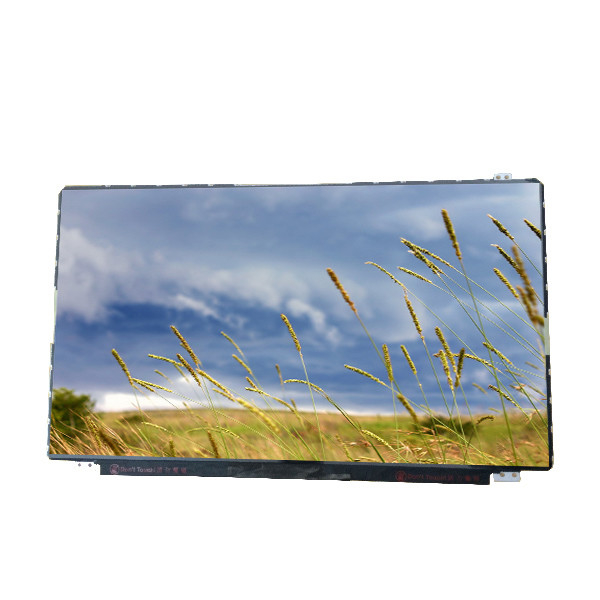

RGB Vertical Stripe Laptop 15.6 touch LCD 1366*7638 40pin B156XTT01.2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTT01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | B156XTT01.2 | Panel Size: | 15.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA, 100PPI | Display Area: | 344.232 × 193.536 Mm (H×V) |
| Outline Size: | 364.9 × 224.56× 5.2 Mm (H×V×D) | Display Brightness: | 200 Cd/m² (Typ.) |
| Viewing Angle: | 45/45/15/35 (Min.)(CR≥10 | Application: | Laptop |
Product Description
RGB Vertical Stripe Laptop 15.6 touch LCD 1366*7638 40pin B156XTT01.2
B156XTT01.2 Product details :
| AUO LCD SCREEN B156XTT01.2 | |
| Panel Brand | AUO |
| Panel Model | B156XTT01.2 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB vertical bars |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Outline Size | 364.9 × 224.56× 5.2 mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (7H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(G to G) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frequency | 60Hz |
| Touch Screen | PCAP, Optical Bonding |
| Signal Interface | LVDS (1 ch, 6-bit) 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| RGB Vertical Stripe Laptop 15.6 touch LCD 1366*7638 40pin B156XTT01.2 | |
B156XTT01.2 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
B156XTT01.2 Shipment:
Usually we will prepare and ship your goods within 5 business days.
The shipping charge doesn't include the import tax,buyer is responsible for custom duties.
Pls check if your item is in good condition upon receipt of it.
B156XTT01.2 Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
B156XTT01.2 Pay:
1: We accept Alipay, PayPal,
2: All major credit cards are accepted through secure payment processes-sor ESCROW
3: Make sure you read the entire description and agree to the Transaction before buying.
B156XTT01.2 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
B156XTT01.2 FAQ:
1.When will my order ship?
All orders are shipped within 2-4 working days.
2 What's the quality level?
High quality with Grade A
3. How about your quality control?
Checking the surface to avoid any physical damage and scratches. Testing the LCD Screen& Digitizer strictly under different pictures to see if there are any dead pixes, dust or spots.Then send your goods.
4. What is MOQ?
Normally 10pcs per item for regular orders as MOQ, sample order is acceptable before the bulk order.
