60Hz 27 Inch LCD Screen LM270PF1L01 FHD RGB 3840x2160 LCD Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM270PF1L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM270PF1L01 | Screen Size: | 27.0 Inch |
|---|---|---|---|
| Pixel Number: | 3840(RGB)×2160 (UHD) 163PPI | Active Area(mm): | 596.736 × 335.664 (H×V) |
| Outline(mm): | 608.8 × 355.3 × 13.3 (H×V×D) | Luminance: | 350 Cd/m² (Typ.) |
| Mass: | 3.15Kgs (Typ.) | Used For: | Desktop Monitor |
| High Light: | 27 inch LCD Screen LM270PF1L01,27 inch LCD Screen,RGB FHD LCD Panel |
||
Product Description

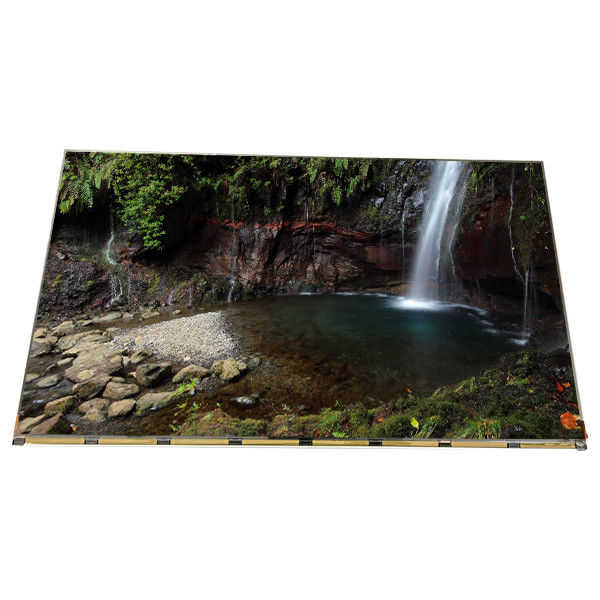

27.0 inch 60Hz LCD Screen LM270PF1L01 FHD 3840(RGB)×2160 LCD Panel
LM270PF1L01 Product details :
| PANDA LCD Screen LM270PF1L01 | |
| Panel Brand | PANDA |
| Panel Model | LM270PF1L01 |
| Panel Size | 27.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 3840(RGB)×2160, UHD, 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 596.736(W)×335.664(H) mm |
| Outline Size | 608.8(W)×355.3(H)×13.3(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 100% sRGB |
| Lamp Type | 16S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 3.15Kgs (Typ.) |
| Application | Desktop Monitor |

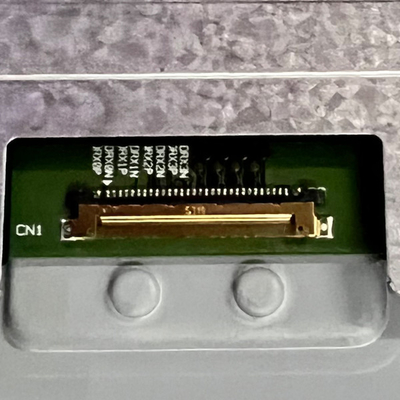

| Signal Interface | eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector |
| Input Voltage | 10.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 27.0 inch 60Hz LCD Screen LM270PF1L01 FHD 3840(RGB)×2160 LCD Panel | |
