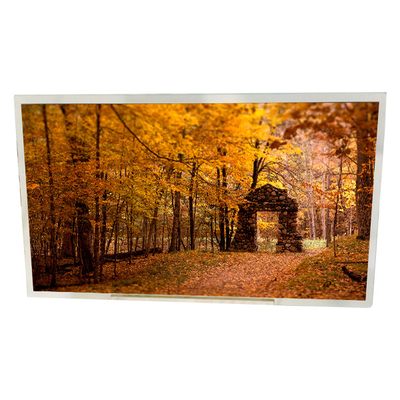

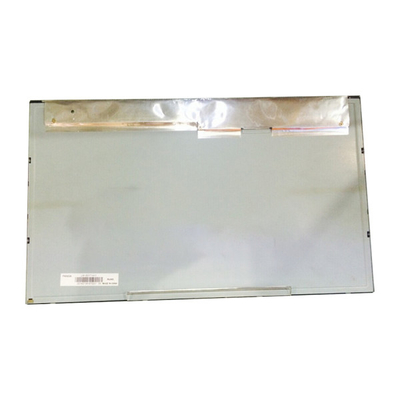

LM185TT1A LCD Monitors Touch Screen Display Replacement 18.5 Inch 1366x768
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM185TT1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM185TT1A | Screen Size: | 18.5 Inch |
|---|---|---|---|
| Pixel Number: | 1366(RGB)×768 (WXGA) 84PPI | Active Area(mm): | 409.8 × 230.4 (H×V) |
| Outline(mm): | 430.37 × 254.6 × 11 (H×V×D) | Bezel Area(mm): | 413.4 × 234.0 (H×V) |
| Mass: | 1.35Kgs (Typ.) | Used For: | Desktop Monitor |
| Highlight: | LM185TT1A LCD Monitors Touch Screen,WXGA LCD Monitors Touch Screen,84PPI Touch Screen Display Replacement |
||
Product Description
18.5 inch 1366x768 LM185TT1A LCD Monitors Touch Screen Display Replacement
LM185TT1A Product details :

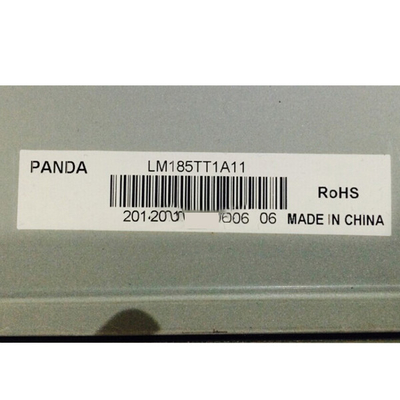

| PANDA LCD Screen LM185TT1A | |
| Panel Brand | PANDA |
| Panel Model | LM185TT1A |
| Panel Size | 18.5" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 84PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8(W)×230.4(H) mm |
| Bezel Opening | 413.4(W)×234.0(H) mm |
| Outline Size | 430.37(W)×254.6(H)×11(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR＞10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 5 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | 10S4P WLED , 30K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Weight | 1.35Kgs (Typ.) |
| Application | Desktop Monitor |
| Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 18.5 inch 1366x768 LM185TT1A LCD Monitors Touch Screen Display Replacement | |
LM185TT1A Advantages about us:
1. The LCD screens you buy are all 100% original authentic.
2. Our goods inventory is very sufficient and shipped within 24 hours.
3. Purchase on the same day, there will be a small gift!
4. The customer installs independently and provides installation instructions.
5. Our packaging is professionally customized and very safe! Each package will have a fragile label
6. Product grade provides A grade (perfect) and B grade (defective, imperfect) Meet various customer needs
7. We provide professional after-sales service, serve customers 24 hours a day, and provide a 90-day warranty (calculated from the time the goods arrive at the destination)
LM185TT1A Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
LM185TT1A Shipping and Package :
LM185TT1A About shipment:
We ship our products all over the world and the delivery time is 3-5 working days after payment confirmation. You can also choose an operator and will inform you of the additional charges in remote areas as soon as possible.
All prices excluding import and export tax shall be paid by the buyer.
(we will cooperate with you to provide the required declaration information)
LM185TT1A Return:
· Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
· Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
LM185TT1A FAQ:
Q: How long is the warranty of LM185TT1A ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LM185TT1A ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LM185TT1A ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods LM185TT1A by credit card ?
A: Yes!you can use your credit card through your Paypal account.
