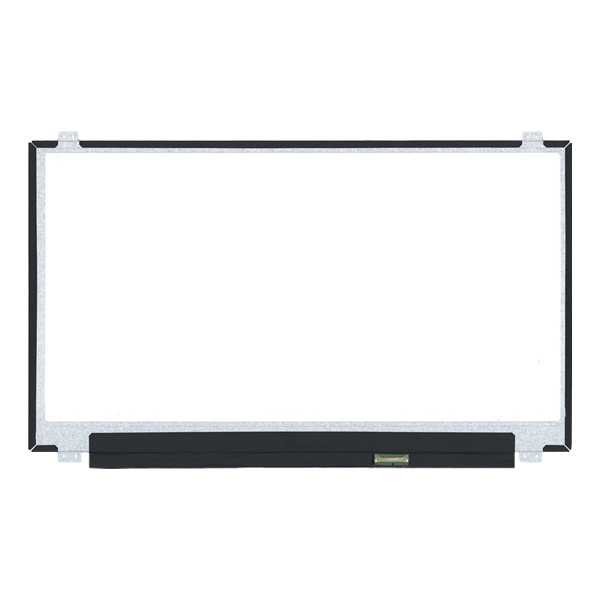

15.6 Inch IPS Laptop LED LCD Screen 1920x1080 30Pin Connector LM156LF1L09
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LF1L09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM156LF1L09 (SHP14A4) | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Arrangement: | RGB Vertical Stripe | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 359.5 × 223.8 × 3.2 (H×V×D) | Luminance: | 250 (Typ.)(cd/m²) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | IPS laptop LED LCD Screen,Symmetry laptop LED LCD Screen,LM156LF1L09 LED LCD laptop Screen |
||
Product Description
15.6 inch IPS 1920x1080 30PIN LED Screen LM156LF1L09 led lcd laptop screen
LM156LF1L09 (SHP14A4) Product details :
| PANDA LCD Screen LM156LF1L09 (SHP14A4) | |
| Panel Brand | PANDA |
| Panel Model | LM156LF1L09 (SHP14A4) |
| Panel Brand | 15.6" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 359.5(W)×223.8(H)×3.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 15.6 inch IPS 1920x1080 30PIN LED Screen LM156LF1L09 led lcd laptop screen | |
LM156LF1L09 (SHP14A4) Our advantages:
1: We are all own stock, with adequate supply
2: The quality of the product reached a series of certification
3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.
I firmly believe
We will be your best partner
LM156LF1L09 (SHP14A4) Attention:
1.Please confirm your ADDRESScarefully once you make the order, and remember to write your FULL NAM Eon Alibaba which is important for success of receiving your package.
2.Your package will shipping out within1-2 Working days after we getting your payment, if orders is made on holiday,it will be shipped out on next working day!
3.Test the display and touch 's function before shipping.3 months warranty provided against quality problem.
4.If you're not sure what model you need to buy,please contact our company and we will reply you as soon as possible! Please Don't leave us low star feedback before contacting us , we always try our best to provide satisfied solution for our customer.
5.Please contact us if you don’t receive the products in time. Besides, we will check the package with the logistic company that they whether deliver it to you or not
LM156LF1L09 (SHP14A4) Shipping and Package :
LM156LF1L09 (SHP14A4) Return Policy:
* All items can be returned within 7 days after receiving the package for refund (via PayPal), if the package is not opened. Buyer needs to be responsible for two-way shipping fee.
* All returned products must be in original condition, any used item will not be eligible for refund and exchange.
* The 20% re-stocking fee of original item cost will be applied for all non-defective, screen not used, screen not need, and wrong screen, order return or exchange.
* A Return Merchandise Authorization number (RMA) is required for all return. Without RMA number the return will not be accepted.
* We only accept the original package. Please make sure the item have no man-made damage.
LM156LF1L09 (SHP14A4) FAQ:
Q: How long is the warranty of LM156LF1L09 (SHP14A4) ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of LM156LF1L09 (SHP14A4) ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I order LM156LF1L09 (SHP14A4) now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for LM156LF1L09 (SHP14A4) ?
A: Of course!sample order is welcome !
