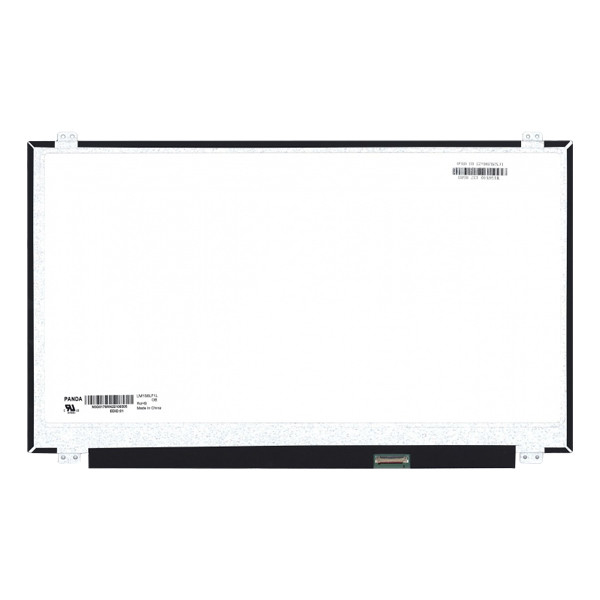

15.6 Inch LCD Laptop Screen LM156LF1L08 IPS 1920x1080 30PIN Antiglare
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LF1L08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM156LF1L08 (NCP003B) | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 359.5 × 223.8 × 3.2 (H×V×D) | Treatment: | Antiglare, Hard Coating (3H) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | Antiglare LCD Laptop Screen,LCD Laptop Screen LM156LF1L08 |
||
Product Description
15.6 inch lcd laptop screen LM156LF1L08 IPS 1920x1080 30PIN LED Screen laptop
LM156LF1L08 (NCP003B) Product details :
| PANDA LCD Screen LM156LF1L08 (NCP003B) | |
| Manufacturer | PANDA |
| Model Name | LM156LF1L08 (NCP003B) |
| Screen Size | 15.6 inch |
| Screen Type | LCM , Oxide TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 359.5 × 223.8 × 3.2 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 (Typ.)(cd/m²) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Work Mode | FFS, Normally Black, Transmissive |
| Good View at | Symmetry |
| Response | 25 (Typ.)(Tr+Tf) ms |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm ) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 15.6 inch lcd laptop screen LM156LF1L08 IPS 1920x1080 30PIN LED Screen laptop | |
