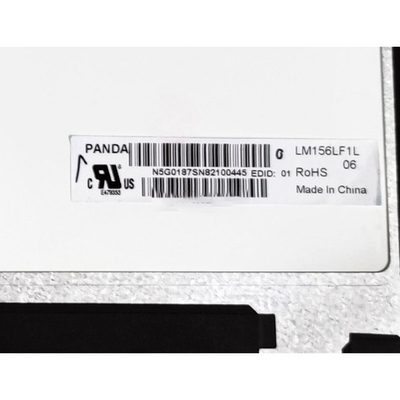

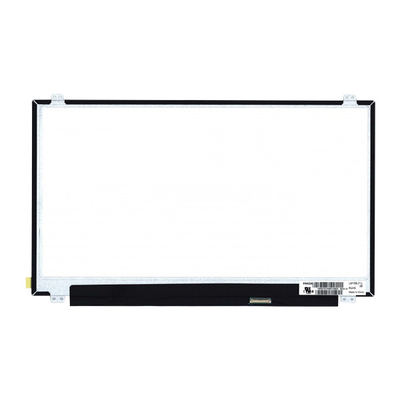

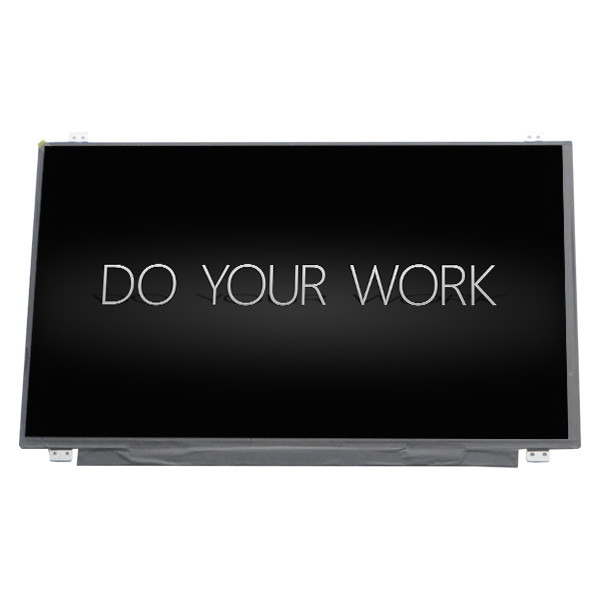

15.6 Inch FHD IPS 30pin LCD Display Panel LCD Laptop Screen LM156LF1L06
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LF1L06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM156LF1L06 (NCP0029) | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 359.5 × 223.8 × 3.2 (H×V×D) | Color Depth: | 262K 45% NTSC |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| Highlight: | 30pin LCD display panel,FHD IPS LCD display panel,LCD Laptop Screen LM156LF1L06 |
||
Product Description
15.6 inch fhd ips 30pin lcd display panel laptop screen LM156LF1L06
LM156LF1L01 Product details :
| PANDA LCD Screen LM156LF1L06 (NCP0029) | |
| Brand | PANDA |
| Model | LM156LF1L06 (NCP0029) |
| Diagonal Size | 15.6 inch |
| Type | Oxide TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Outline Dim. | 359.5(H)×223.8(V)×3.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 262K 45% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 15.6 inch fhd ips 30pin lcd display panel laptop screen LM156LF1L06 | |
Hello, before placing orders LM156LF1L06 (NCP0029) :
To avoid the wrong order or buy wrong product, please double check your model and screen size and part number. If you are not sure the purpose compatibility, please send your original specific models (screen) model on the back of the screen and photos sent to us; Usually we will send the LED panel is compatible model, it may be related to your original screen model is not completely the same. But we can make sure it is suitable for the model
Note: product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
LM156LF1L06 (NCP0029) Payment:
1: We accept Alipay, PayPal, Western Union, TT here
2: All major credit cards are accepted through secure payment proces- sor ESCROW
3: Please make sure you read the entire description and agree to the transaction before buying
LM156LF1L06 (NCP0029) Shipping and Package :
LM156LF1L06 (NCP0029) Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 72 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
LM156LF1L06 (NCP0029) Returns:
1: A full refund will be given if items are returned in their original condition.
2: Merchandise which is damaged or missing components is not re-fundable.
LM156LF1L06 (NCP0029) FAQ:
Q: How to make payment of LM156LF1L06 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of LM156LF1L06 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of LM156LF1L06 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods LM156LF1L06 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
