15.6 Inch LM156LF1L01 Laptop Screen Display LCD IPS 1920*1080
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM156LF1L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM156LF1L01 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 359.5 × 223.8 × 3.2 (H×V×D) | Treatment: | Antiglare, Hard Coating (3H) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | 15.6 Inch Laptop screen display OEM,LM156LF1L01 Laptop screen display |
||
Product Description

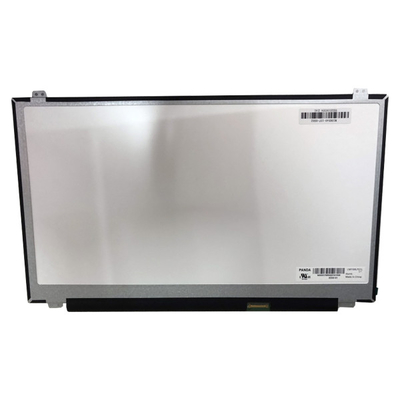

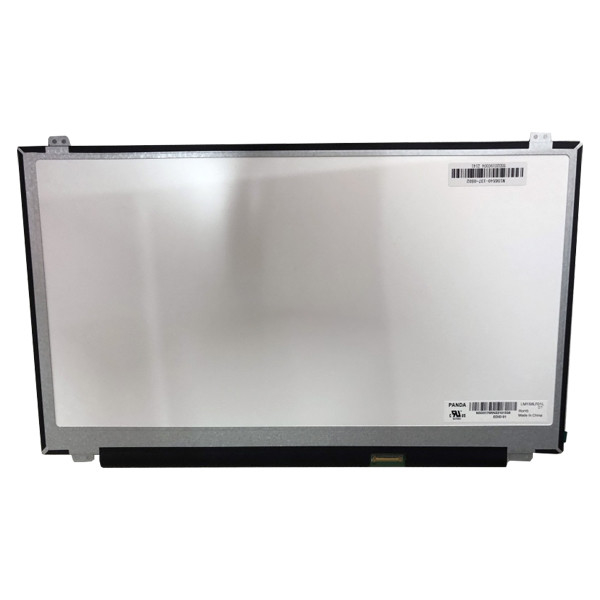

15.6 inch IPS 1920*1080 LM156LF1L01 Laptop screen display lcd
LM156LF1L01 Product details :
| PANDA LCD Screen LM156LF1L01 | |
| Panel Brand | PANDA |
| Panel Model | LM156LF1L01 |
| Panel Size | 15.6" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 359.5(W)×223.8(H)×3.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Tf) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 15.6 inch IPS 1920*1080 LM156LF1L01 Laptop screen display lcd | |
LM156LF1L01 Laptop LCD and LED screen:
1.Size: 10.1", 11.6", 12.5", 13.3", 14.0", 14.1", 15.0", 15.6", 17.3",18.4"
2.Product line: LCD Screen, Touch glass screen, LCD touch screen assembly, LCD Control board, Portable monitor, Industrial LCD Screen
LM156LF1L01 Quality:
We are a professional company, the quality of our products are Grade A+++, without any dead pixels. And all of our products will be tested in real laptops to confirm they will work well before shipping, so you don't need to worry about that.
LM156LF1L01 Shipping and Package :
LM156LF1L01 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
LM156LF1L01 After-Sale:
If you have any problem after receiving your goods, please provide us with the proof of video or photo about the problems of your goods, we will offer replacement immediately or refund after confirming the problem.
If you have any questions in the process of purchase, please feel free to contact us. We will reply immediately.
Wish you a happy shopping!
LM156LF1L01 FAQ:
Q: Can I pay my order of LM156LF1L01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LM156LF1L01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LM156LF1L01 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can You declare my order of LM156LF1L01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
