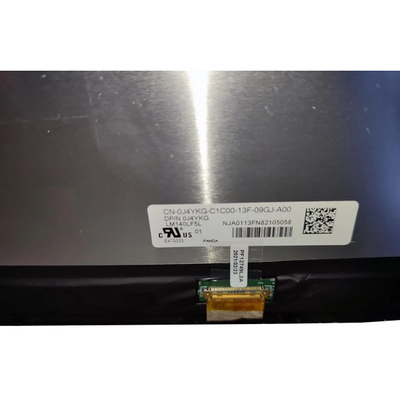

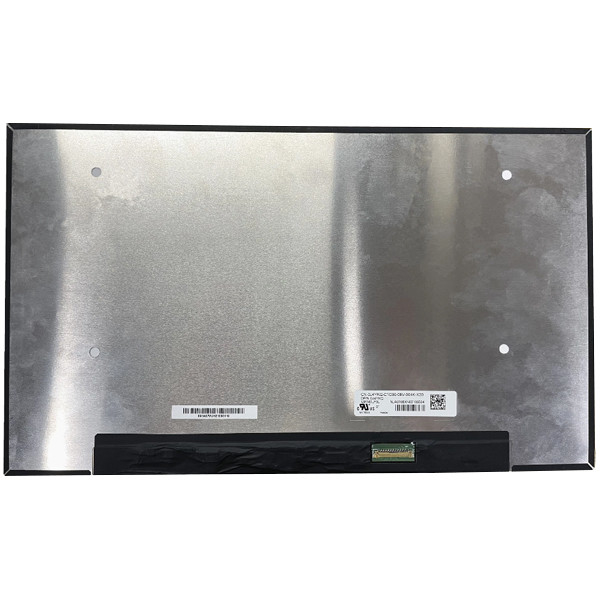

14.0 Inch Slim FHD 30 Pin IPS Laptop LCD Screen LM140LF5L01 60Hz 3.3V
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM140LF5L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM140LF5L01 (NCP0056) | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 157PPI | Active Area(mm): | 309.312 × 173.988 (H×V) |
| Outline(mm): | 315.81 × 186.09 × 5.25 (H×V×D) | Response: | 25 (Typ.)(Tr+Td) Ms |
| Outline Shape: | Slim (PCBA Bent, T≤3.0mm) | Used For: | Laptop |
| Highlight: | 14.0 Inch Laptop LCD Screen,Laptop LCD Screen LM140LF5L01 |
||
Product Description
14.0 inch slim fhd 30 pin ips laptop lcd screen LM140LF5L01
LM140LF5L01 (NCP0056) Product details :
| PANDA LCD Screen LM140LF5L01 (NCP0056) | |
| Manufacturer | PANDA |
| Model Name | LM140LF5L01 (NCP0056) |
| Screen Size | 14.0 inch |
| Screen Type | LCM, Oxide TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.312 × 173.988 (H×V) |
| Outline(mm) | 315.81 × 186.09 × 5.25 (H×V×D) |
| Treatment | Antiglare (Haze 25%) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 14.0 inch slim fhd 30 pin ips laptop lcd screen LM140LF5L01 | |
Our shop has been engaged in physical store wholesale and online retail wholesale in the LCD screen industry for 10 years.
There are many models to choose from and will be uploaded one after another. If you need any screen, you can leave me a message.
1): Project status: The new front screen has the original logo. The logo in the picture has been deleted,After completing the test, complete 100% of the work.
2):For our cooperation, please make sure the comparison product is the same as your laptop screen, please check the screen size, resolution and interface type.
2. Or you can send me your laptop model and screen model (such as "LM140LF5L01") so that we can check it for you as soon as possible. Best to send me a picture of your laptop model and screen.
3. If you want to order a lot of items, we look forward to doing more business with you. We can give you the best price. Please feel free to contact us even if you have any questions. Due to the time difference, we will get back to you within 12 hours.
LM140LF5L01 (NCP0056) Payment:
1: We accept Alipay, PayPal, Western Union, TT here
2: All major credit cards are accepted through secure payment processor ESCROw
3:Please make sure you read the entire description and agree to the transaction before buying.
LM140LF5L01 (NCP0056) Shipping and Package :
LM140LF5L01 (NCP0056) Refund&Return Policy:
We will refund you if the screen was damaged during transportation.
Also we pack it very well, don't worry about that.
You can return the items if item was not as description
LM140LF5L01 (NCP0056) Warranty:
1: we will provide 90 days warranty.
2: Buyers are only responsible for the return shipping fees for warranty items. (In most cases, buyers will only have to return the problem components rather than the entire package.)
3:Before returning items, please make sure you get to our return address, and write“gift”on the delivery sheet. Please use regular
postal service and give us the tracking number. Once we receive the items, we will repair them of exchange them asap.
LM140LF5L01 (NCP0056) FAQ:
Q: Can I pay my order of LM140LF5L01 (NCP0056) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LM140LF5L01 (NCP0056) ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of LM140LF5L01 (NCP0056) ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of LM140LF5L01 (NCP0056) ?
A: Of course!sample order is welcome !
