14.0 Inch FHD IPS Narrow Edge LCD Laptop Screen LM140LF3L For Asus Vivobook
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM140LF3L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM140LF3L (NCP0035) | Screen Size: | 14.0 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 157PPI | Active Area(mm): | 309.312 × 173.988 (H×V) |
| Outline(mm): | 315.81 × 197.57 × 2.95 (H×V×D) | Contrast Ratio: | 1000 : 1 (Typ.) (TM) |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| Highlight: | Narrow Edge LCD Laptop Screen,LCD Laptop Screen LM140LF3L |
||
Product Description

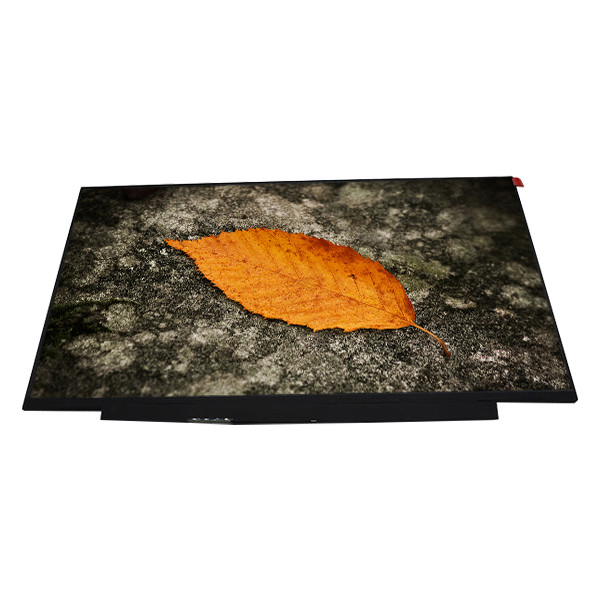

LM140LF3L for Asus Vivobook 14.0 inch slim 30pin FHD IPS narrow edge laptop screen
LM140LF3L (NCP0035) Product details :
| PANDA LCD Screen LM140LF3L (NCP0035) | |
| Manufacturer | PANDA |
| Panel Model | LM140LF3L (NCP0035) |
| Panel Size | 14.0" |
| Panel Type | Oxide TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 157PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 309.312(W)×173.988(H) mm |
| Outline Size | 315.81(W)×197.57(H)×2.95(D) mm |
| Surface | Antiglare |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LM140LF3L for Asus Vivobook 14.0 inch slim 30pin FHD IPS narrow edge laptop screen | |
LM140LF3L (NCP0035) NOTE:

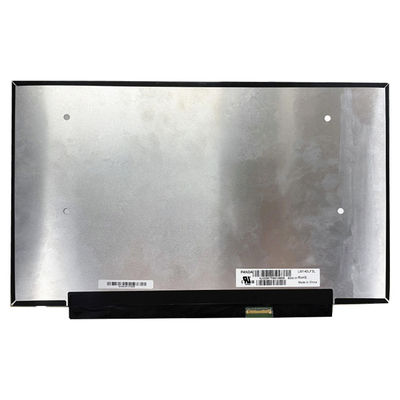

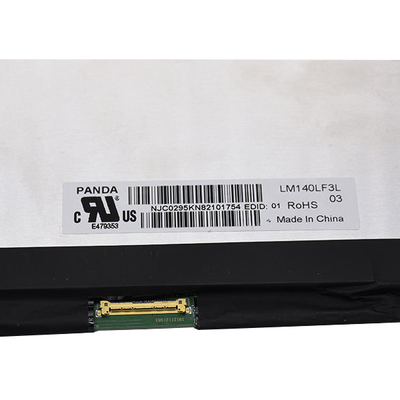

Be sure to compare your panel with the one shown in the photo - the appearance, fasteners and connector must match.
Pay attention to compatible / incompatible models (if any).
Attention! You will receive one of the compatible models in the delivery, it may not match the one indicated in the header.
In the same laptop model, there may be different, incompatible matrices.
Installation of the panel requires a high qualification of a specialist.
LM140LF3L (NCP0035) Payment:
All the following payment methods are available for you. Visa, Master Card, Maestro, American Express, Wire Transfer, Webmoney, Yandex.Money, Western Union, QIWI, DOKU, Mercado Pago, Boleto,bancontact, TEF, iDeal, Giropay, Sofort Banking, Carte Bancaire (Carte Bule), Przelewy24, SMS Payment in Russia (MTC, MegaFon, Beeline, TELE2), Cash Payment (Euroset, Syvaony, Russian Post)
LM140LF3L (NCP0035) Shipping and Package :
LM140LF3L (NCP0035) Packing:
The screen will be wrapped with Cardboard, and put in a super hard Box to make sure it is 100% safe. And we will put a protected film onto the screen to protect it from Scratches.
LM140LF3L (NCP0035) Shipping:
(Please note: Weekdays: excluding weekends and holidays)
1. We will ship the item by registered airmail within 2 working days after payment. The shipment time of the following goods may be longer sometimes due to customs problems, holidays or other uncertain reasons.Most countries :25-45 working days (Germany, Spain, Sweden, Switzerland, etc.)To USA, UK, Australia :7-18 working days To Russia :25-60 working days, because Russian Post is very slow For faster delivery, please contact us.
2. We send your packages as gifts all over the world. Please make sure your delivery address is correct.
3. Packages are secure and require signatures. If not signed for, the packagewill be returned. Please don't forget to pick it up at the post office. Thank you very much!
LM140LF3L (NCP0035) FAQ:
Q: Can I pay my order of LM140LF3L via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of LM140LF3L ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of LM140LF3L to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LM140LF3L ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
