EDP 30pin Matte Laptop LCD Screen LM140LF2L05 14.0 Inch RGB 1920×1080 FHD IPS
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM140LF2L05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM140LF2L05 (NCP0062) | Panel Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD, 157PPI | Display Area: | 309.312(W)×173.988(H) Mm |
| Outline Size: | 315.81(W)×197.57(H)×3(D) Mm | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Shape Style: | Slim (PCBA Flat, T≤3.2mm) | Application: | Laptop |
| High Light: | LM140LF2L05 laptop lcd screen,matte laptop LCD screen |
||
Product Description

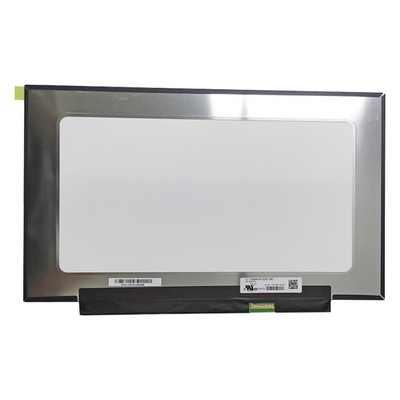

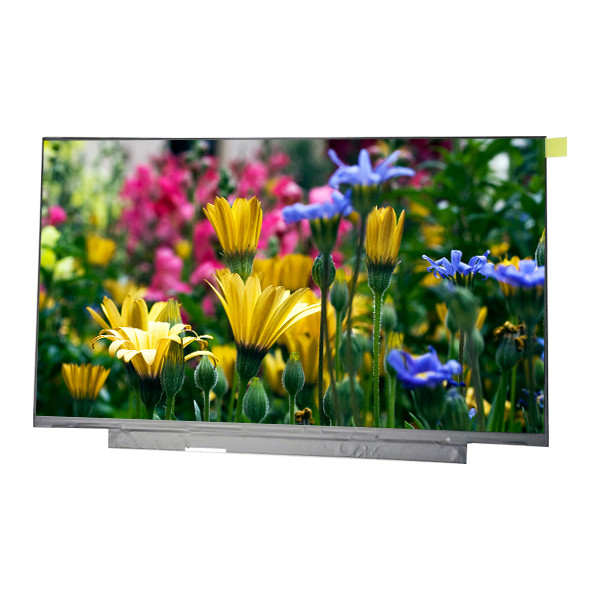

LM140LF2L05 14.0 inch 1920(RGB)×1080 FHD IPS EDP 30pin matte laptop lcd screen
LM140LF2L05 (NCP0062) Product details :
| PANDA LCD Screen LM140LF2L05 (NCP0062) | |
| Manufacturer | PANDA |
| Model Name | LM140LF2L05 (NCP0062) |
| Screen Size | 14.0 inch |
| Screen Type | LCM, Oxide TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.312 × 173.988 (H×V) |
| Outline(mm) | 315.81 × 197.57 × 3 (H×V×D) |
| Treatment | Hard coating |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | PAS, Normally Black, Transmissive |
| Color Depth | 16.7M 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LM140LF2L05 14.0 inch 1920(RGB)×1080 FHD IPS EDP 30pin matte laptop lcd screen | |
LM140LF2L05 (NCP0062) Attention:
To avoid wrong order placed or wrong item you bought, here is something you need to read before ordering,
1. Please check your laptop model in compatible list or tell if wide screen or standard screen.
2. Please check the LCD screen size and resolution.
3. Please check the Data connector (14pin, 20pin, 30pin(S M L) ,40pin(S,M,L), 50pin 60pin ) and position
4. Please check the physical resolution pixels of LCD screen.
LM140LF2L05 (NCP0062) Payment and Taxes:
1. We recommend Alipay to be safer.
2. Shipment of the products outside China will incur import duties and other charges which are not included in the price or freight of the products and are for the responsibility of the recipient.
LM140LF2L05 (NCP0062) Shipping and Package :
LM140LF2L05 (NCP0062) Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
LM140LF2L05 (NCP0062) Note:
Customer has 7 days to inspect/install the product after delivery. Pleasereport any damage during this period and the customer may replace the same product if the defect is confirmed within 90 days. When exchanging different products, customers are said to have made two separate transactions, a return and a purchase.
LM140LF2L05 (NCP0062) FAQ:
Q: What happen if the lcd panel LM140LF2L05 (NCP0062) received can't work ?
A: Our lcd display LM140LF2L05 (NCP0062) tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to order PANDA lcd panel LM140LF2L05 (NCP0062) ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
