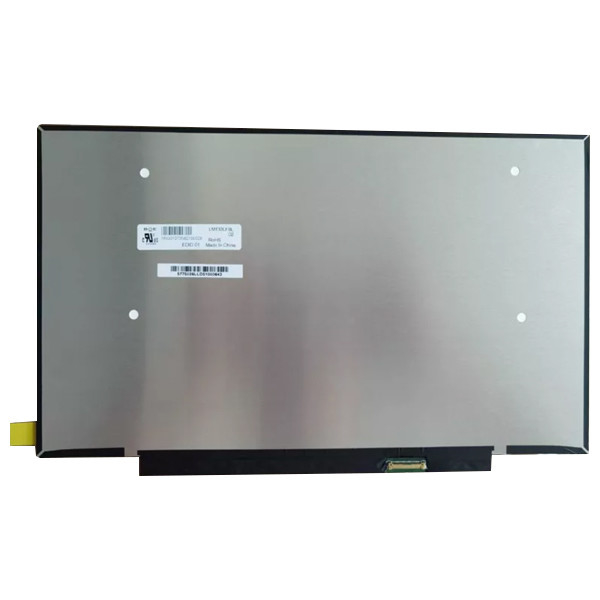

LM133LF8L02 13.3 Inch TFT LCD Display Module 1920*1080 30 Pins LCD Screen Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM133LF8L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LM133LF8L02 (NCP0069) | Diagonal Size: | 13.3 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 166PPI | Active Area: | 293.76(H)×165.24(V) Mm |
| Luminance: | 300 Cd/m² (Typ.) | Contrast Ratio: | 1200:1 (Typ.) (TM) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | 13.3 inch TFT LCD display module,LM133LF8L02 tft lcd display module,300 cd/m2 LCD Screen Panel |
||
Product Description
LM133LF8L02 13.3 inch tft lcd display module 1920*1080 lcd panel 30 pins
LM133LF8L02 (NCP0069) Product details :
| PANDA LCD Screen LM133LF7L02 (NCP0055) | |
| Brand | PANDA |
| Model | LM133LF7L02 (NCP0055) |
| Diagonal Size | 13.3 inch |
| Type | Oxide TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 293.76(H)×165.24(V) mm |
| Outline Dim. | 300.26(H)×177.35(V)×4.35(D) mm |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 16.7M 47% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM133LF8L02 13.3 inch tft lcd display module 1920*1080 lcd panel 30 pins | |
LM133LF8L02 (NCP0069) Note:
1. If you any requirements on declaration, please leave us a note.
2. More than one is allowed. If you're wholesale dealer or you wanna order items in bulk, please ask us if we can provide a discount.
3. If you have any questions before you place the order, don't hesitate to contact us.
LM133LF8L02 (NCP0069) Payment and Tax:
1.Paypal is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
3.The order will be cancelled beyond 7 business days on unpaid station.
LM133LF8L02 (NCP0069) Shipping and Package :
LM133LF8L02 (NCP0069) Shipment:
1.The item will be sent to your address listed in the Alipay. Please make sure your delivery address and contact telephone number are correct when you bid the item.
2.Items are usually shipped our within 7 days during the business days after payment has been received.
3.You can track the situation of your product on website after they are shipped out
LM133LF8L02 (NCP0069) Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (not include Public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
LM133LF8L02 (NCP0069) FAQ:
Q: Do you accept sample orders of LM133LF8L02 (NCP0069) ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of LM133LF8L02 (NCP0069) ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods LM133LF8L02 (NCP0069) ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of LM133LF8L02 (NCP0069) via credit card ?
A: Yes!you can use your credit card through your Paypal account.
