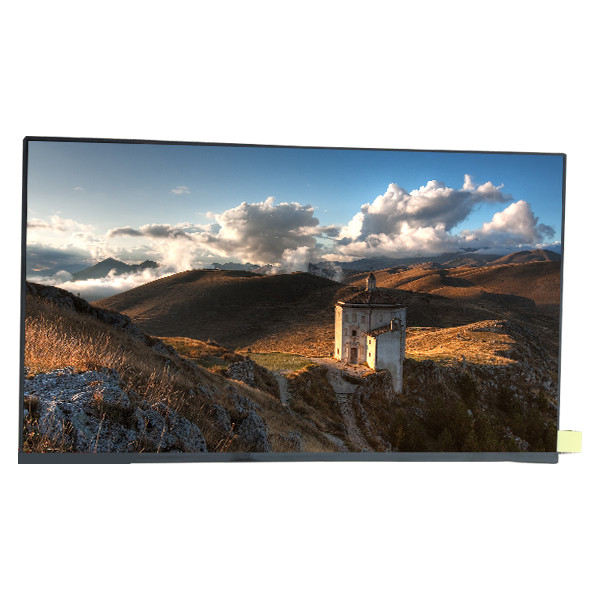

13.3 Inch LM133LF7L02 IPS 2k HD LCD Laptop Screen 40 Pins 60hz LCD Display Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM133LF7L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LM133LF7L02 (NCP0055) | Diagonal Size: | 13.3 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 166PPI | Active Area: | 293.76(H)×165.24(V) Mm |
| Outline Dim.: | 300.26(H)×177.35(V)×4.35(D) Mm | Luminance: | 250 Cd/m² (Typ.) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | LM133LF7L02 LCD Laptop Screen,IPS LCD Laptop Screen,60hz LCD Display Panel |
||
Product Description
13.3 inch LM133LF7L02 Ips 2k Hd Screen 60hz Lcd Display Panel 40 Pins For Laptop
LM133LF7L02 (NCP0055) Product details :
| PANDA LCD Screen LM133LF7L02 (NCP0055) | |
| Brand | PANDA |
| Model | LM133LF7L02 (NCP0055) |
| Diagonal Size | 13.3 inch |
| Type | Oxide TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 293.76(H)×165.24(V) mm |
| Outline Dim. | 300.26(H)×177.35(V)×4.35(D) mm |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 16.7M 47% NTSC |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| 13.3 inch LM133LF7L02 Ips 2k Hd Screen 60hz Lcd Display Panel 40 Pins For Laptop | |
LM133LF7L02 (NCP0055) Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility
LM133LF7L02 (NCP0055) Shipping and Package :
LM133LF7L02 (NCP0055) About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
LM133LF7L02 (NCP0055) Delivery time is approx:
United States / United Kingdom / Australia 7-14 working days.
Canada 7-25 working days.
France / Spain / Germany may take 7-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil / South America may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive)
LM133LF7L02 (NCP0055) About Guarantee:
1.12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with 3-month warranty.
2.Defective items MUST BE reported & returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is & give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
LM133LF7L02 (NCP0055) FAQ:
Q: What happen if the lcd panel LM133LF7L02 (NCP0055) I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you declared low value of my order about LM133LF7L02 (NCP0055) ?
A: Yes , we can . But you need to leave message to us before shipping.
Q: When will my order LM133LF7L02 (NCP0055) ?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order PANDA LM133LF7L02 (NCP0055) ?
A: We accept T/T , PAYPAL , WESTERN UNION .
