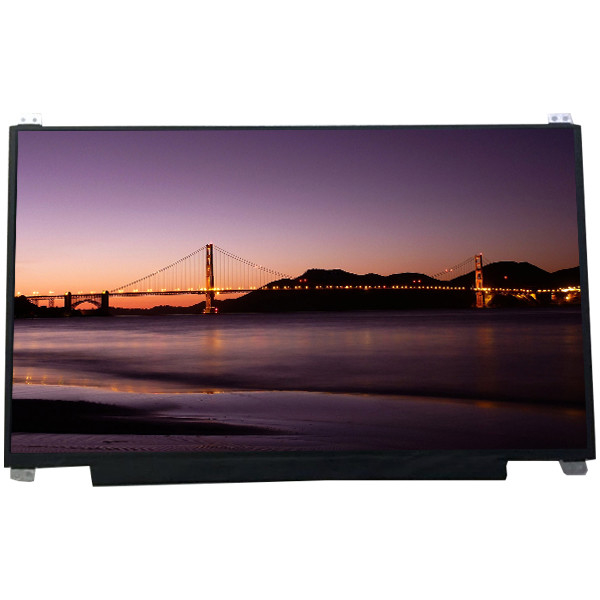

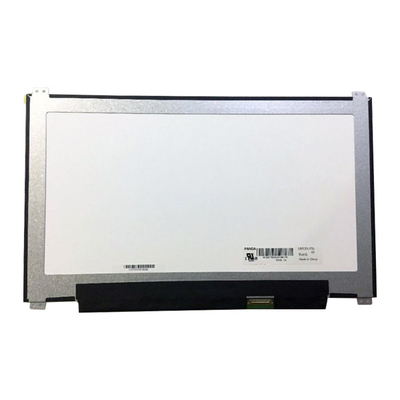

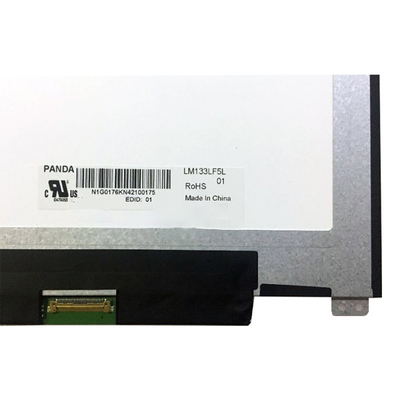

LM133LF5L01 Laptop Screen Monitor 13.3 Inch FHD 1920X1080 FFS IPS LED LCD Laptop Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM133LF5L01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LM133LF5L01 (NCP0020) | Diagonal Size: | 13.3 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 166PPI | Active Area: | 293.76(H)×165.24(V) Mm |
| Outline Dim.: | 305.2(H)×193.85(V)×3(D) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | LM133LF5L01 Laptop Screen Monitor,FFS LED LCD Laptop Screen,IPS LED LCD Laptop Screen |
||
Product Description
LM133LF5L01 screen monitor replace for Laptop 13.3 inch FHD 1920X1080 FFS IPS LCD Display LED Screen
LM133LF5L01 Product details :
| PANDA LCD Screen LM133LF5L01 (NCP0020) | |
| Brand | PANDA |
| Model | LM133LF5L01 (NCP0020) |
| Diagonal Size | 13.3 inch |
| Type | Oxide TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 293.76(H)×165.24(V) mm |
| Outline Dim. | 305.2(H)×193.85(V)×3(D) mm |
| Treatment | Antiglare (Haze 24%) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 16.7M 71% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| LM133LF5L01 screen monitor replace for Laptop 13.3 inch FHD 1920X1080 FFS IPS LCD Display LED Screen | |
LM133LF5L01 Purchase Instructions:
Dear customers, welcome to Our shop ! Hope you have a good business trip in our store!
1. Please select the model you need. If you have any questions, please contact us.
2. The product can provide detailed development data and technical support. Please contact us !
3. For repair and replacement, if you are not familiar with LCD, pls.contact us first !
4. If you have any questions about freight and price, please contact us.
5. Pls.choose the right shipment .According to experience, we suggest to choose Aliexpress Standard shipping .
6 We are factory . We support customized products if you have big quantity .
7. If you have any questions, please contact us first. Thanks for your cooperation!
LM133LF5L01 Shipping and Package :
LM133LF5L01 Packing :
Outer packing is strong carton , inner packing is foam , it will be strong and safe enough , to avoid getting broken in the transport .
LM133LF5L01 Shipping :
1, Shipping via Alibaba Standard Shipping.
2, We will send out your goods within 3 working days after we get your order .
3, Normally , you can get the goods within 10-20 calendar days .
4, Please make sure your shipping information ( including address / post code / phone number / contact person ) are correct before order . If you want us send it to another address , pls inform us in advance , and leave message in our transaction.
LM133LF5L01 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Regardless reason, customer may return product during a period as specified below in eBay Return Policy Section, for a refund of purchase price less 20% restocking fee. The customer is responsible for all return shipping charges in all cases.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
Customer please request a Return Merchandise Authorization (RMA) prior to shipping product back, and is responsible for any shipping charges to ship the product back. Any return/exchange without RMA may be rejected. Please follow instructions in RMA to pack the product or it may be rejected.
LM133LF5L01 FAQ:
Q: If I place order now,when will you ship the goods of LM133LF5L01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of LM133LF5L01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of LM133LF5L01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods LM133LF5L01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
