350cd/M2 Laptop Touch Screen Display LM133LF1L02 For ACER SPIN 5 SP513-51 N16W1
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM133LF1L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | LM133LF1L02 | Diagonal Size: | 13.3 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 [FHD] 166PPI | Active Area: | 293.76(H)×165.24(V) Mm |
| Outline Dim.: | 305.2(H)×188.1(V)×2.85(D) Mm | Luminance: | 350 Cd/m² (Typ.) |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| High Light: | 350cd/M2 Laptop Touch Screen Display,Symmetry Laptop Touch Screen Display,Laptop Screen Display LM133LF1L02 |
||
Product Description

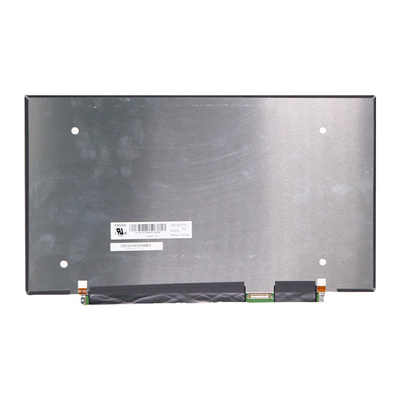

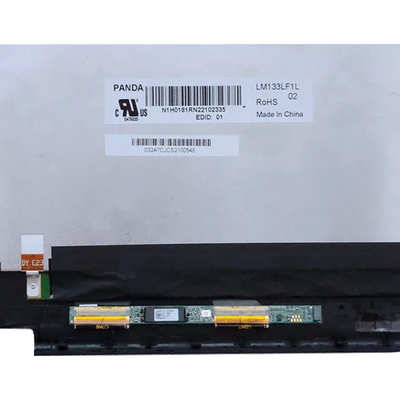

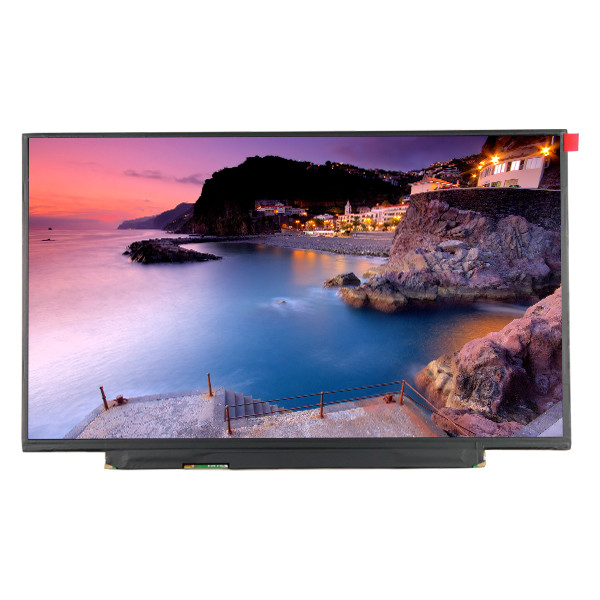

Laptop Touch Screen Display Assembly For Acer spin 5 SP513-51 n16w1 LM133LF1L02
LM133LF1L02 Product details :
| PANDA LCD Screen LM133LF1L02 | |
| Manufacturer | PANDA |
| Model | LM133LF1L02 |
| Diagonal Size | 13.3 inch |
| Type | Oxide TFT-LCD , LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 293.76(H)×165.24(V) mm |
| Outline Dim. | 305.2(H)×188.1(V)×2.85(D) mm |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Light Source | WLED , 10K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (2 Lanes) 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Laptop Touch Screen Display Assembly For Acer spin 5 SP513-51 n16w1 LM133LF1L02 | |
LM133LF1L02 Payment and Tax:
1.Paypal is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
3.The order will be cancelled beyond 7 business days on unpaid station.
LM133LF1L02 Shipping and Package :
LM133LF1L02 About the goods:
Receive delivery company products, please check whether the parcel in good face to face. If damaged packaging or product damage, please refuse and ask the photos to prove it. Photos are divided into two parts, divided into two parts. A customer himself as evidence, the other a Courier company as a third party. Then when we received the Courier company send us the pictures of damaged products, we will find out is responsible for the damage to the product of the case. No third party evidence we can't pay for
LM133LF1L02 About the return:
Customers can be in within 90 days after receipt of the goods to replace the same product, when determine the defective. When the replacement of different products, customers are regarded as two independent trading, return and purchase
All without defects, do not need to order, error screen, screen return original goods cost 20% restocking fee will be charged. Return of the freight shall be borne by the buyers.
Return of the goods, please keep the original packing sound
If you have any questions, please don't open dispute, don't give us bad review. We will do our best to solve the problem and provide good after-sales service. Please keep in touch with us
LM133LF1L02 Other policies:
If you need a lot of quantity, please contact us, will give you a favorable price.
We are not responsible for all taxes and import duties
Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!
LM133LF1L02 FAQ:
Q: How do you ship my goods LM133LF1L02 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of PANDA LM133LF1L02 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel glass PANDA LM133LF1L02 at a very low value ?
A: Yes , we can . pls inform us before shipping .
