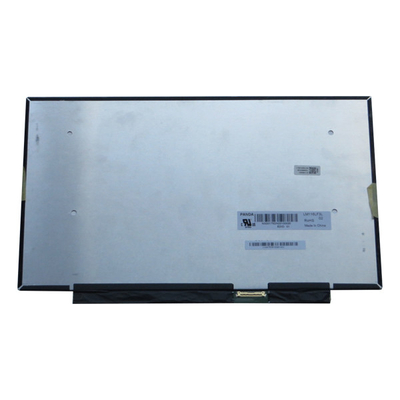

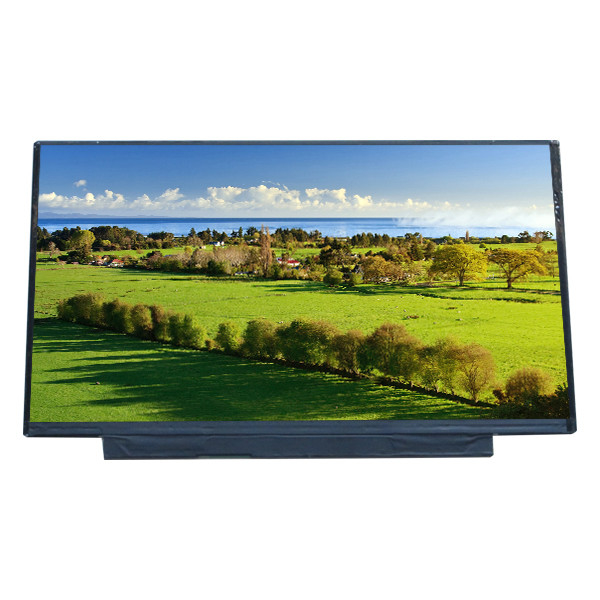

PANDA 11.6 Inch LCD Panel Slim 30Pin FHD IPS Matte LM116LF3L02
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LM116LF3L02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LM116LF3L02 (NCP0000) | Screen Size: | 11.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 190PPI | Active Area(mm): | 256.32 × 144.18 (H×V) |
| Outline(mm): | 268 × 168 × 3 (H×V×D) | Good View At: | Symmetry |
| Mass: | 215g (Max.) | Used For: | Pad & Tablet |
| Highlight: | PANDA 11.6 Inch LCD Panel,11.6 inch lcd panel LM116LF3L02,FHD IPS 11.6 inch lcd panel |
||
Product Description
PANDA lcd screen 11.6 inch Slim 30Pin FHD IPS Matte LM116LF3L02
LM116LF3L02 (NCP0000) Product details :
| PANDA LCD Screen LM116LF3L02 (NCP0000) | |
| Manufacturer | PANDA |
| Model Name | LM116LF3L02 (NCP0000) |
| Screen Size | 11.6 inch |
| Screen Type | LCM , Oxide TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 190PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 256.32 × 144.18 (H×V) |
| Outline(mm) | 268 × 168 × 3 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | FFS, Normally Black, Transmissive |
| Color Depth | 16.7M 100% sRGB |
| Backlight | WLED , 15K hours , With LED Driver |
| Mass | 215g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
| PANDA lcd screen 11.6 inch Slim 30Pin FHD IPS Matte LM116LF3L02 | |
LM116LF3L02 (NCP0000) Hello, before placing orders:
To avoid the wrong order or buy wrong product, please double check your model and screen size and part number. If you are not sure the purpose compatibility, please send your original specific models (screen) model on the back of the screen and photos sent to us; Usually we will send the LED panel is compatible model, it may be related to your original screen model is not completely the same. But we can make sure it is suitable for the model
Note: product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
LM116LF3L02 (NCP0000) Shipping and Package :
LM116LF3L02 (NCP0000) SHIPPING:
We use ALI stander shipping EMS DHL fedex and so on. you can choose when you place order .
The items will be sent within 1-2 business days after payment is completed.(some products need more days accounding to the stock )
Each order will be attached a tracking number and we will send to you.
Packaging: Antistaagtic bag+bubble bag+bubble chamber+suitable hard carton.
LM116LF3L02 (NCP0000) After-sales service:
This product warranty for 6 months from the date of receipt of the customer,
the human factor damage is not covered by the warranty
the seller is not covered by the warranty shipping costs
the refund will be return after the return parcel received.all goods are labeling
identification do not tear, Otherwise will be no warranty, thank you for your understanding.
LM116LF3L02 (NCP0000) Return Policy:
* All items can be returned within 7 days after receiving the package for refund (via PayPal), if the package is not opened. Buyer needs to be responsible for two-way shipping fee.
* All returned products must be in original condition, any used item will not be eligible for refund and exchange.
* The 20% re-stocking fee of original item cost will be applied for all non-defective, screen not used, screen not need, and wrong screen, order return or exchange.
* A Return Merchandise Authorization number (RMA) is required for all return. Without RMA number the return will not be accepted.
* We only accept the original package. Please make sure the item have no man-made damage.
LM116LF3L02 (NCP0000) FAQ:
Q: How do you ship my goods LM116LF3L02 (NCP0000) ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: If I order LM116LF3L02 (NCP0000) now,when will you ship the goods ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders for PANDA LM116LF3L02 (NCP0000) ?
A: Of course!sample order is
