PANDA LC156LF1L03 LCD Screen Display Replacement 15.6 Inch 1920x1080
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | PANDA |
| Model Number: | LC156LF1L03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | LC156LF1L03 | Screen Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Number: | 1920(RGB)×1080 (FHD) 141PPI | Active Area(mm): | 344.16 × 193.59 (H×V) |
| Outline(mm): | 354.36 × 204.04 × 1.076 (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Color Depth: | 262K 47% NTSC | Used For: | Laptop |
| High Light: | LC156LF1L03 LCD Screen Display Replacement,PANDA LCD Screen Display Replacement,Symmetry LCD Screen Display |
||
Product Description

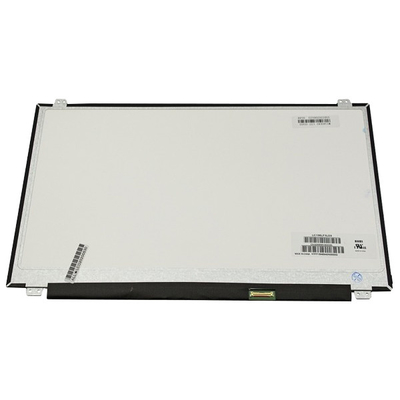

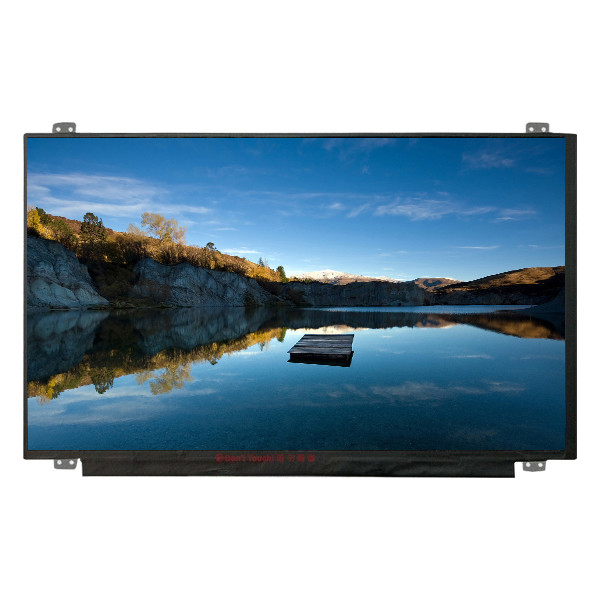

PANDA 15.6 inch 1920x1080 LC156LF1L03 LCD Screen Display Replacement
LC156LF1L03 Product details :
| PANDA LCD Screen LC156LF1L03 | |
| Panel Brand | PANDA |
| Panel Model | LC156LF1L03 |
| Panel Size | 15.6" |
| Panel Type | Oxide TFT-LCD , CELL |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Outline Size | 354.36(W)×204.04(H)×1.076(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Brightness | 0 cd/m² |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 6.5% (Typ.) |
| Display Colors | 262K 47% NTSC |
| Lamp Type | No B/L , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Application | Laptop |
| Driver IC list | Built-in COG 4 source + 2 gate chips |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| PANDA 15.6 inch 1920x1080 LC156LF1L03 LCD Screen Display Replacement | |
LC156LF1L03 Ransaction:
• if the buyer cannot find the same product, the buyer can send us the product and model, and we will provide it for you.
• 100% new meaning new product.95% new and 90% new meaning second-hand products,All products good working,tested before shipping.
• After installation, if not working, please contact us as soon as possible, and our engineers will help you solve the problem.
• at the time of delivery, please verify the correctness and completeness of the goods. If the goods are wrong or damaged, please refuse to sign and contact us.
LC156LF1L03 Payment:
Which payment methods can you use ?
You can use the following payment methods:
Visa, MasterCard, Maestro, American Express, Wire Transfer, Webmoney, Yandex Money, Western Union, QIWI, DOKU, Mercado Pago,Boleto, bancontact,TEF, iDeal, Giropay, Sofort Banking, Carte Bancaire (Carte Blue), Przelewy24, SMS Payment in Russia (MTC, MegaFon, Beeline, TELE2), Cash Payment (Euroset, Syvaony, Russian Post), and AliExpress Pocket.
If your payment failed, please use another credit card or contact us by aliexpress message.
LC156LF1L03 Shipping and Package :
LC156LF1L03 Shipping :
1.To Brazil buyers, Need to offer us CNPJ or CPF if ship the goods by DHL/FEDEX/EMS.
2.To Russia buyers, The goods only can be shipped by EMS/ePacket, The buyer need to offer full name of receiver!
3.The Duty or custom fees is depend on BUYER country, Not Seller! If need declare low value when shipping , Please advise us in time !
4.To remote areas buyers , If ship the order by FEDEX/DHL , Need to add extra fee USD30.00, Hope buyer can understand us.
LC156LF1L03 Refund&Return Policy:
1.We will refund you if the screen was damaged during transportation.
2.Also we pack it very well, don't worry about that.
3.You can return the items if item was not as description.
LC156LF1L03 FAQ:
Q: Can I pay my goods LC156LF1L03 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of LC156LF1L03 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders for LC156LF1L03 ?
A: Of course!sample order is welcome !
Q: How to make payment for LC156LF1L03 ?
A: We accept T/T , Paypal , western union .
