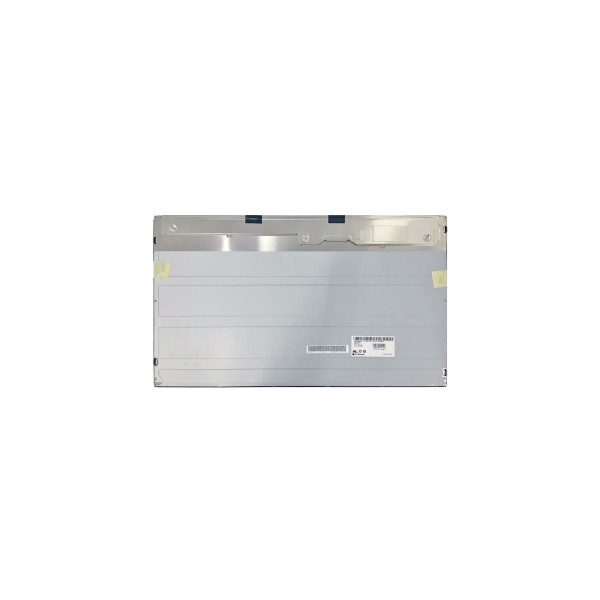

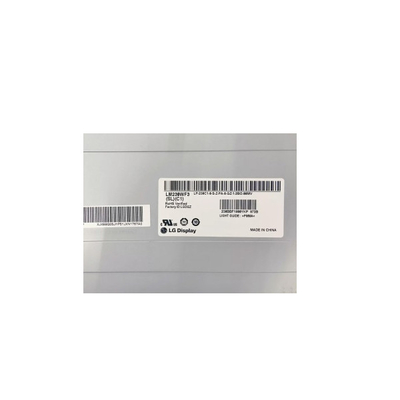

LM230WF3-SLC1 LCD Screen Display 23.0 inch RGB 1920×1080 FHD 95PPI LCD Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | LG Display |
| Model Number: | LM230WF3-SLC1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | LM230WF3-SLC1 | Panel Size: | 23.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 95PPI | Active Area: | 509.184(W)×286.416(H) Mm |
| Outline Size: | 533.2(W)×312(H)×11(D) Mm | Signal Interface: | LVDS (2 Ch, 8-bit), 30 PinsConnector |
| Input Voltage: | 5.0V (Typ.) | Application: | Desktop Monitor |
| Highlight: | CC430LV1D LCD Screen Display Panel,51PPI LCD Screen Display Panel |
||
Product Description
LM230WF3-SLC1 LCD Screen Display 23.0 inch RGB 1920×1080 FHD 95PPI LCD Panel
LM230WF3-SLC1 Product details :
| Brand | LG Display |
| Model P/N | LM230WF3-SLC1 |
| Diagonal Size | 23.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 95PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 509.184(W)×286.416(H) mm |
| Bezel Opening | 513.8(W)×291.0(H) mm |
| Outline Size | 533.2(W)×312(H)×11(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(G to G) |
| Display Colors | 16.7M 72%NTSC |
| Lamp Type | 4 stringsWLED, 30K hours, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 1.58/1.66Kgs (Typ./Max.) |
| Application | Desktop Monitor |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pinsConnector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
LM230WF3-SLC1 About Payment Information:
We accept Escrow service.
LM230WF3-SLC1 About Customs Duty & Handling Fee:
For all customers` orders, we do not charge handing fee, even 1pcs part.
When parts arrive at your local custom, if the parts were charged customs duty, we are not responsible for any customs duties or import taxes.
LM230WF3-SLC1 Shipping and Package :
LM230WF3-SLC1 Terms of Shipment:
Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed by Escrow.
LM230WF3-SLC1 Shipping Companies:
We support shipment by "EMS" "DHL" "China Post Air Mail ",
If you need help selecting a fast and reliable shipping company, please contact us direct and we will do our best to help.
LM230WF3-SLC1 Replacement & Refund:
1. We provide 90 days for quality warranty
2. If the parts you purchase from us are not of perfected quality or they don't work, please simply return them to us for replacement or refund
3. If the part is defective, please notify us within 3 days after arrival.
4. Any parts must be returned in their original condition to qualify for a refund or replacement
LM230WF3-SLC1 Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
LM230WF3-SLC1 FAQ:
Q: How can I trace my order of LM230WF3-SLC1 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of LM230WF3-SLC1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of LM230WF3-SLC1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods LM230WF3-SLC1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
