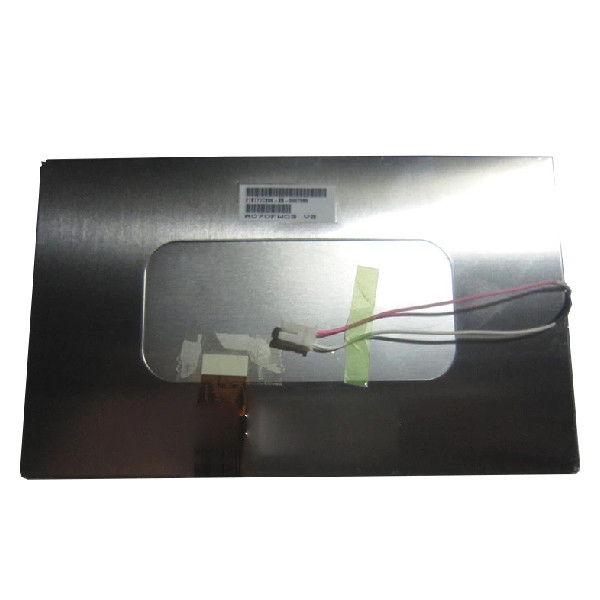

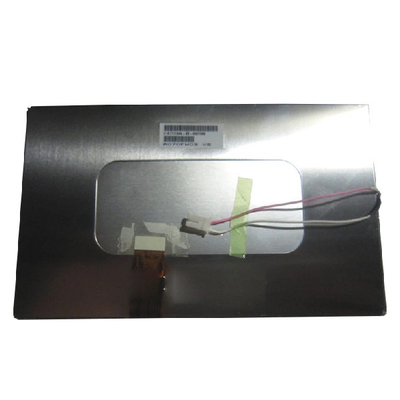

7.0 Inch 480*234 CCFL TFT LCD Screen A070FW03 V2 Rgb Stripe AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A070FW03 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | A070FW03 V2 | Panel Size: | 7.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×234, 76PPI | Display Area: | 154.08(W)×86.58(H) Mm |
| Outline Size: | 164.9(W)×100(H)×6(D) Mm | Brightness: | 400 Cd/m² (Typ.) |
| Panel Weight: | 160±10g | Application: | Digital Photo Frame / Portable DVD Player / Video Door Phone |
| High Light: | CCFL TFT lcd screen,TFT lcd screen A070FW03 V2,Rgb Stripe AUO LCD Display |
||
Product Description
7.0 inch 480*234 CCFL TFT lcd screen A070FW03 V2 rgb stripe auo lcd display
A070FW03 V2 Product details :
| AUO LCD SCREEN A070FW03 V2 | |
| Panel Brand | AUO |
| Panel Model | A070FW03 V2 |
| Panel Size | 7.0" |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 154.08(H)×86.58(V) mm |
| Outline Size | 164.9(H)×100(V)×6(D) mm |
| Surface | Haze (Haze25%) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing Angle | 65/65/40/65 (Typ.) (CR≥10) |
| Best View on | 6 o'clock |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | Full color |
| Lamp Type | 1 pcs CCFL , 10K hours, no driver |
| Touch Screen | Without |
| Panel Weight | 160±10g |
| Application | Digital Photo Frame / Portable DVD Player / Video Door Phone |
| Signal Interface | 26 pins TFT Specific Analog RGB , FPC |
| Input Voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Storage temperature: -20 ~ 70 °C Operating temperature: -10 ~ 60 °C |
| 7.0 inch 480*234 CCFL TFT lcd screen A070FW03 V2 rgb stripe auo lcd display | |
