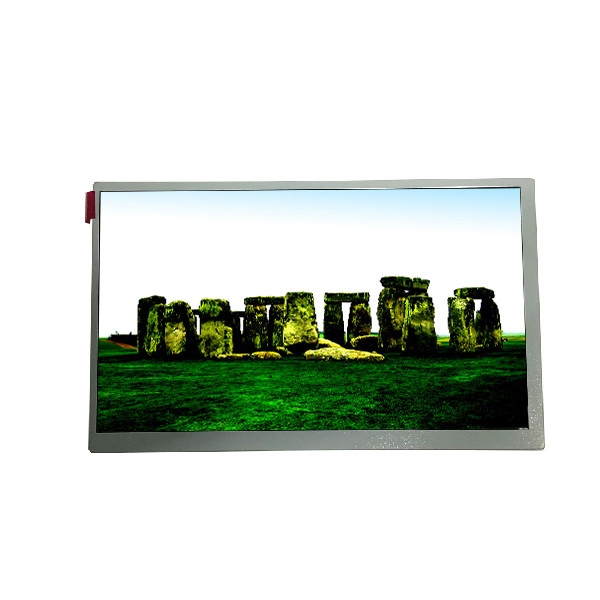

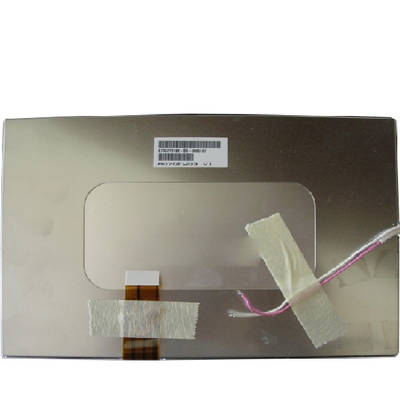

A070FW03 V1 LCD Screen Panel 7.0 Inch Rgb Stripe AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A070FW03 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | A070FW03 V1 | Diagonal Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Format: | 480(RGB)×234 76PPI | Active Area: | 154.08(H)×86.58(V) Mm |
| Outline Dim.: | 164.9(H)×100(V)×6(D) Mm | Contrast Ratio: | 300:1 (Typ.) (TM) |
| Weight: | 160±10g | Designed For: | Automotive Display |
| High Light: | A070FW03 V1 LCD Screen Panel,Rgb Stripe LCD Screen Panel,7.0 Inch auo lcd display |
||
Product Description
A070FW03 V1 LCD SCREEN LCD PANEL 7.0 inch rgb stripe auo lcd display
A070FW03 V1 Product details :
| AUO LCD SCREEN A070FW03 V1 | |
| Panel Brand | AUO |
| Panel Model | A070FW03 V1 |
| Panel Size | 7.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 480(RGB)×234 76PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 154.08(H)×86.58(V) mm |
| Outline Size | 164.9(H)×100(V)×11.52(D) mm |
| Surface | Haze (Haze 5.5%) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing Angle | 60/60/40/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | CCFL [1 pcs] , 10K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 162±10g |
| Signal Interface | 26 pins TFT Specific Analog RGB , FPC |
| Input Voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating temperature: -30 ~ 85 °C ; Storage temperature: -40 ~ 95 °C ; Vibration resistance: 2.9G (28.4 m/s²) |
| A070FW03 V1 LCD SCREEN LCD PANEL 7.0 inch rgb stripe auo lcd display | |
A070FW03 V1 Our strengths:
1. The LCD screen you purchased is 100% genuine.
2. Our goods are in sufficient stock and will be delivered within 24 hours.
3. The customer shall install independently and provide installation instructions.
4. Our packaging is professionally customized and very safe! Each package has a fragile label
5. Product level provides class A (perfect) and class A (imperfect) to meet various customer needs
6. We provide professional after-sales service, 24-hour customer service and 90 Day Warranty (calculated from the arrival of the goods at the destination)
A070FW03 V1 Shipping and Package :
A070FW03 V1 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 10-25 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift,the shipping address as according to your paypal address.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
A070FW03 V1 Return&Refund:
1. You have 7 days to contact us & 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used & WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller & buyer in half.
2. All returned items MUST BE in the original packaging & you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from aliexpress. OR, you may choose to have a replacement.
4. We will bear all the shipping cost if the product(s) is (are) not as advertised.
A070FW03 V1 NOTE:
In order to get timely & best after-sale sersive,please kindly try your best to make some video!
1.If you find box broken or items are broken --- make an unpacking video/ or clear photos of items ---contact us then send the video!
2. If you get unworking items;please kindly reset or update after installing ,if still no useful,then make a testing video ----- contact us and send the video
A070FW03 V1 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of A070FW03 V1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of A070FW03 V1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long will I receive my goods A070FW03 V1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
