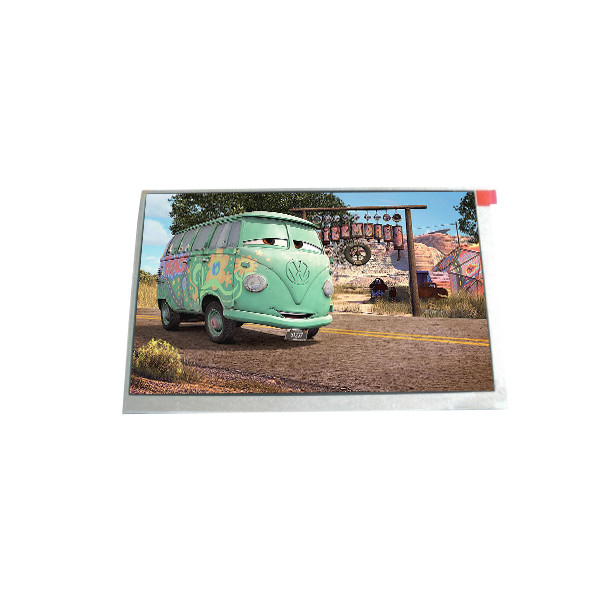

A070FW02 LCD Screen Display Panel New Original RGB Stripe AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A070FW02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | A070FW02 | Diagonal Size: | 7.0 Inch |
|---|---|---|---|
| Pixel Format: | 480(RGB)×234 76PPI | Active Area: | 154.08(H)×86.58(V) Mm |
| Outline Dim.: | 167.1(H)×102(V)×11.6(D) Mm | Bezel Area: | 156.2(H)×88.8(V) Mm |
| Weight: | 180±10g | Designed For: | Automotive Display |
| High Light: | A070FW02 LCD Screen Display Panel,LCD Screen Display Panel 76PPI,Automotive AUO LCD display |
||
Product Description
A070FW02 LCD Screen new original rgb stripe auo lcd display
A070FW02 Product details :
| AUO LCD Screen A070FW02 | |
| Panel Brand | AUO |
| Panel Model | A070FW02 |
| screen size | 7.0inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 480(RGB)×234, 76PPI |
| Pixel configuration | RGB Vertical Stripe |
| Display size | 154.08(W)×86.58(H) mm |
| physical dimension | 167.1(W)×102(H) ×11.6(D) mm |
| Bezel Opening | 156.2(W)×88.8(H) mm |
| surface | Haze (Haze 5.5%) |
| Brightness (cd/m²) | 500 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing Angle | 60/60/40/55 (Typ.) (CR≥10) |
| responding speed | 15/20 (Typ.)(Tr/Td) ms |
| Optical mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Display Colors | Full color |
| Backlight type | CCFL [1 pcs] , 40K hours, no driver |
| Touch Screen | Without |
| Application | Automotive Display |
| screen weight | 180±10g |
| signal system | 26 pins TFT Specific Analog RGB , FPC |
| Supply voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Operating Temperature: -30 ~ 70 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| A070FW02 LCD Screen new original rgb stripe auo lcd display | |
A070FW02 Note:
1.Each screen be tested before shipping and 100% working well.
2.Please test before installation !!!
3.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
4.LCD is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
A070FW02 Quality:
We have a wealth of experience in Tablet PC and mobile phone maintenance in China.All the Replacement Screen will be checked and tested carefully by our experienced quality control team before shipment.100% work well.
A070FW02 Shipping and Package :
A070FW02 Packing:
the parcel will be packed well with bubble bag + strong box.Do not worry.
A070FW02 Shipping:
1. WORLDWIDE SHIPPING. (Except some countries & APO/FPO)
2. All orders will be shipped out after the payment arrive at Escrrow!!Order placed on weekend or holiday will be shipped on Monday or next working day.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are the actual item,please kindly check your items carefully before order.
5. SERVICE TRANSIT TIME is provided by the carrier & excludes weekends & holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 50 days from payment, please contact us. We will track the shipment & get back to you as soon as possible with a reply. Our goal is customer satisfaction!
Since the code number is updated unstable,We just guarantee the one you received that will be compatible with your tablet, Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title / description /photo states is out of supply in the market, thank you!
A070FW02 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
A070FW02 FAQ:
Q: If I place order now,when will you ship the goods of A070FW02 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of A070FW02 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of A070FW02 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods A070FW02 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
