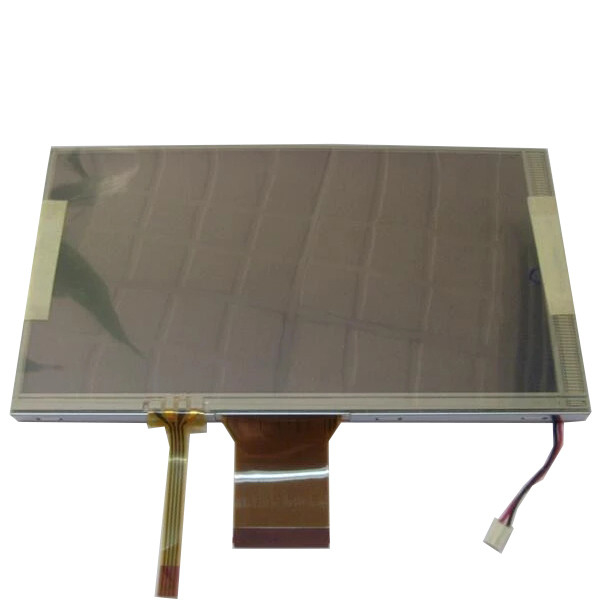

6.5 Inch A065VL01 V3 LCD Screen Panel WVGA 144PPI AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A065VL01 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A065VL01 V3 | Screen Size: | 6.5 Inch |
|---|---|---|---|
| Pixel Number: | 800(RGB)×480 (WVGA) 144PPI | Active Area(mm): | 143.4 × 79.2 (H×V) |
| Outline(mm): | 157.2 × 89.2 (H×V×D) | Bezel Area(mm): | 145.5 × 81.3 (H×V) |
| Mass: | 116g (Typ.) | Used For: | Digital Photo Frame / Portable DVD Player |
| High Light: | A065VL01 V3 LCD Screen Panel,WVGA LCD Screen Panel,144PPI AUO LCD Display |
||
Product Description
New Original 6.5 inch A065VL01 V3 LCD Screen rgb stripe auo lcd display
A065VL01 V3 Product details :
| AUO LCD SCREEN A065VL01 V3 | |
| Panel Brand | AUO |
| Panel Model | A065VL01 V3 |
| Panel Size | 6.5" |
| Panel Type | LCM, LTPS TFT-LCD |
| Resolution | 800(RGB)×480 [WVGA] 144PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 143.4 × 79.2 mm (H×V) |
| Bezel Opening | 145.5 × 81.3 mm (H×V) |
| Outline Size | 157.2 × 89.2 mm (H×V×D) |
| Surface | Haze (Haze 25%) |
| Brightness | 500 cd/m² (Typ.) |
| Contrast Ratio | 300:1 (Typ.) (Transmission) |
| Viewing Angle | 55/55/45/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 12/18 (Typ.)(Tr/Td) ms |
| Display Colors | 262K |
| Lamp Type | 4S1P WLED , 10K hours, no drive |
| Application | Digital Photo Frame / Portable DVD Player |
| Panel Weight | 116g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , FPC , 80 pins |
| Input Voltage | 3.3/10.5/13.5/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Environment | Storage temperature: -25 ~ 80 °C Operating temperature: 0 ~ 60 °C |
| New Original 6.5 inch A065VL01 V3 LCD Screen rgb stripe auo lcd display | |
A065VL01 V3 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : A065VL01 V3
•2-->Your LCD Screen name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
A065VL01 V3 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
3.For all the problems, please do not leave negative feedback or open dispute before contacting us, Please send us message and we will solve the problem for you immediatel
4. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
5. Provide a 90-day warranty time, man-made damage and natural disasters are not covered by the warranty! (calculated from the time the goods arrive at the destination)
A065VL01 V3 Shipping and Package :
A065VL01 V3 Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
A065VL01 V3 Warning:
*Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
*We just can guarantee the one you received that will be compatible with your tablet,
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title/description/photo states is out of supply in the market, thank you!
1. Each screen is tested before shipping & 100% working;Repair/Replacing old, broken, cracked,damaged faulty touch screen.
2. After receiving the goods, do not tear the film, do not stick the glue on the back, test the machine first, remove the old screen, insert the new screen, and check whether the sensitivity is normal. Please be sure to try the machine first. Make sure the quality is ok. Install again.it is easy to burn the motherboard and touch screen, we are not responsible.
3.before connection test the power must be disconnected ,Otherwise it will burn the motherboard and touch screen easily.If it doesn't work, we won't be responsible.
A065VL01 V3 FAQ:
Q: Can you give me a discount if I need a large quantity of A065VL01 V3 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of A065VL01 V3 ?
A: Of course!sample order is welcome !
Q: How to make payment of A065VL01 V3 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of A065VL01 V3 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
