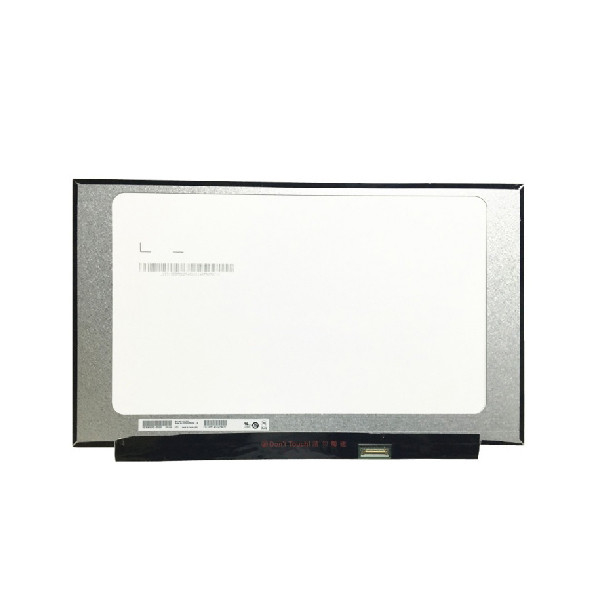

AUO Vertical Stripe 15.6 Inch LCD Panel B156HAN02.2 HWNA 1920*1080 141PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN02.2 HWNA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156HAN02.2 HWNA | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 FHD 141PPI | Active Area: | 344.16(H)×193.59(V) Mm |
| Outline Dim.: | 350.66 × 216.15 × 3.2 Mm (H×V×D) | Viewing Angle: | 85/85/85/85 (Typ.) (CR≥10) |
| Display Colors: | 262K , 45% NTSC | Designed For: | Laptop |
| High Light: | AHVA 15.6 Inch LCD Panel,15.6 Inch LCD Panel 1920*1080 |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.2 HWNA 1920*1080 141PPI
B156HAN02.2 HWNA Product details :
| AUO LCD SCREEN B156HAN02.2 HWNA | |
| Panel Brand | AUO |
| Panel Model | B156HAN02.2 HWNA |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080 FHD 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(H)×193.59(V) mm |
| Outline Size | 350.66 × 216.15 × 3.2 mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 220 cd/m² (Typ.) |
| View Direction | Symmetry |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Display Mode | AHVA, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Frequency | 60Hz |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Touch Screen | Without |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN02.2 HWNA 1920*1080 141PPI | |
B156HAN02.2 HWNA Attention:
1.In order to avoid any mistake , please tell us your screen part number or laptop model after paying, send by photo will be better, we will response you as soon as possible, thank you.
2. Before installing the screen, please turn off the laptop, disconnect the power supply and remove the battery. Do not install the screen while the laptop is on, otherwise your cable may be burned out.
B156HAN02.2 HWNA Friendly Reminder :
We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
B156HAN02.2 HWNA About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
B156HAN02.2 HWNA Return/Refund:
1.You have 7 days to contact us and 30 days to return it from the date it was received.If this item is in your possession more than 7 days, it is considered used and we WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.
2.All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number,specific reason for the return, and your po#.
3. we will refund Your FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction . OR, you may choose to have a replacement.
4. we will bear all the shipping cost if the product(s) is (are) not as advertised.
B156HAN02.2 HWNA FAQ:
Q: How long is the warranty of B156HAN02.2 HWNA ?
A: 90days warranty .
Q: Can you give me a discount if I need a large quantity of B156HAN02.2 HWNA ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of B156HAN02.2 HWNA ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my goods B156HAN02.2 HWNA by credit card ?
A: Yes!you can use your credit card through your Paypal account.
