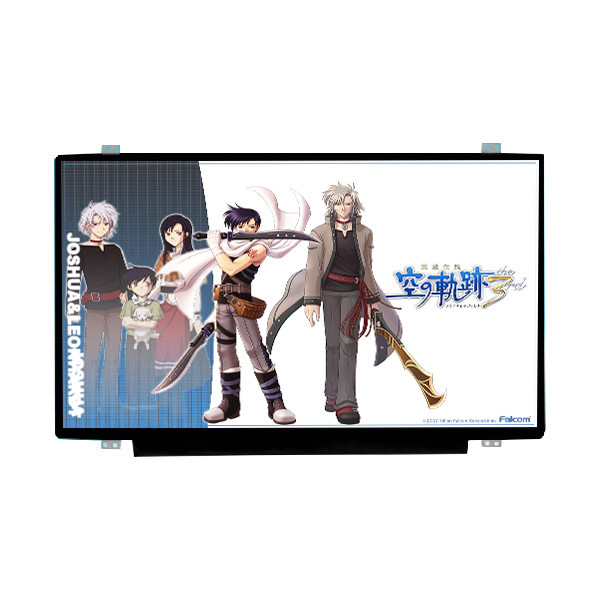

AUO B156XTN05.1 15.6 Inch LCD Panel 1366*768 WXGA 100 PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XTN05.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156XTN05.1 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768 WXGA 100PPI | Active Area: | 344.232 × 193.536 Mm (H×V) |
| Outline Dim.: | 359.3 × 223.8 × 3.8mm (H×V×D) | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Display Colors: | 262K , 45% NTSC | Designed For: | Laptop |
| High Light: | WLED 15.6 Inch LCD Panel,15.6 Inch LCD Panel 200 cd/m2,B156XTN05.1 LCD Screen Display |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN05.1 1366*768 100 PPI
B156XTN05.1 Product details :
| AUO LCD SCREEN B156XTN05.1 | |
| Panel Brand | AUO |
| Panel Model | B156XTN05.1 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768 WXGA 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Outline Size | 359.3 × 223.8 × 3.8mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| View Direction | 6 o'clock |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 16 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 15K hours, with LED driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frequency | 60Hz |
| Touch Screen | Without |
| Signal Interface | eDP (1 Lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XTN05.1 1366*768 100 PPI | |
B156XTN05.1 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
3.For all the problems Please send us message via and we will solve the problem for you immediatel
B156XTN05.1 About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
B156XTN05.1 About the shipping:
The recipient must be full name or company name.We use standard transport EMS DHL, fedex, etc. You can choose the next order. if you want to quickly get parcel. Recommend the use of DHL or by EMS, if you choose the DHL transport. Some remote address DHL needs additional remote address for service. Fees paid by the buyer. Customs clearance fee, if any, shall be borne by the buyers.
After completion of the payment, the goods will be sent 1-3 working days. (part of the product according to the inventory needs more days)
B156XTN05.1 Return/Refund:
1.You have 7 days to contact us and 30 days to return it from the date it was received.If this item is in your possession more than 7 days, it is considered used and we WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.
2.All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number,specific reason for the return, and your po#.
3. we will refund Your FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction . OR, you may choose to have a replacement.
4. we will bear all the shipping cost if the product(s) is (are) not as advertised.
B156XTN05.1 FAQ:
Q: Do you accept sample orders of B156XTN05.1 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods B156XTN05.1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of B156XTN05.1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
B156XTN05.1 Shipping and Package :
