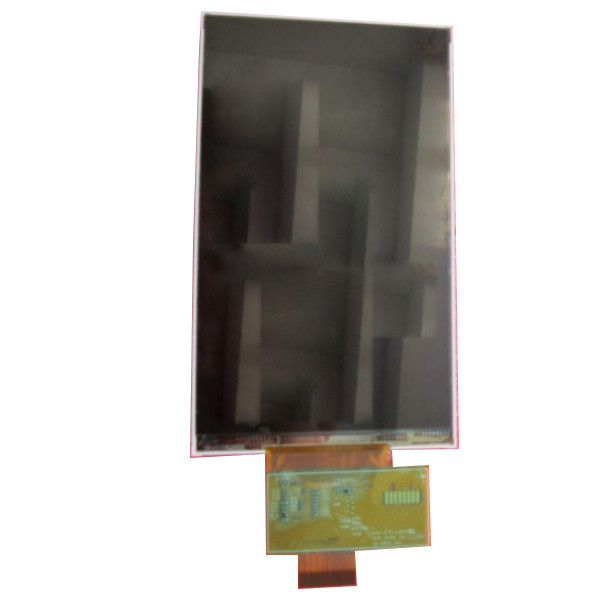

A050VW02 V0 LCD Touch Screen Panel RGB Stripe AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A050VW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | A050VW02 V0 | Diagonal Size: | 5.0 Inch |
|---|---|---|---|
| Pixel Format: | 480(RGB)×800 [WVGA] 188PPI | Active Area: | 64.8(H)×108(V) Mm |
| Outline Dim.: | 68.8(H)×117.1(V)×2.81(D) Mm | Luminance: | 450 Cd/m² (Typ.) |
| Weight: | 46.5±2.3g | Designed For: | Portable Navigation |
| High Light: | A050VW02 V0 LCD touch screen panel,MIPI LCD touch screen panel,188PPI AUO LCD Display |
||
Product Description
A050VW02 V0 LCD touch screen panel rgb stripe auo lcd display
A050VW02 V0 Product details :
| AUO LCD SCREEN A050VW02 V0 | |
| Panel Brand | AUO |
| Panel Model | A050VW02 V0 |
| Panel Size | 5.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480(WVGA) 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 64.8 × 108 mm (H×V) |
| Outline Size | 68.8 × 117.1 × 2.81 mm (H×V×D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 450 (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) [Transmission] |
| Viewing Angle | 80/80/80/80 (Typ.) (CR≥10) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 20/15 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 50% NTSC |
| Lamp Type | 6S2P WLED , 10K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 46.5±2.3g |
| Signal Interface | MIPI (2 data lanes) , terminal, 30 pins |
| Input Voltage | 2.8/2.8V (Typ.)(VCI/VDDI) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C |
| A050VW02 V0 LCD touch screen panel rgb stripe auo lcd display | |
A050VW02 V0 Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. The customer installs independently and provides the installation tutorial instructions.
4. Our packaging is professionally customized and very safe! Each package will have a fragile label.
5. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
6. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time the goods arrive at the destination).
A050VW02 V0 Payment:
1. We accept Alipay,west Union,T/T.All major credit cards are accepted through secure payment processor ESCROW.
2.Payment must be made within 3 days of order.
3. If you can't checkout immediately after auction close, please wait for a few minutes and retry.
A050VW02 V0 Shipping and Package :
A050VW02 V0 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
A050VW02 V0 Service hours:
If you have any question, please contact us I will sincerely for your service, our service time for the Beijing time:8:00-12: 00; 1: 30-6:00;But we have 24 hours will have customer service for you to solve the problem.
A050VW02 V0 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How can I trace my order of A050VW02 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of A050VW02 V0 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of A050VW02 V0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
