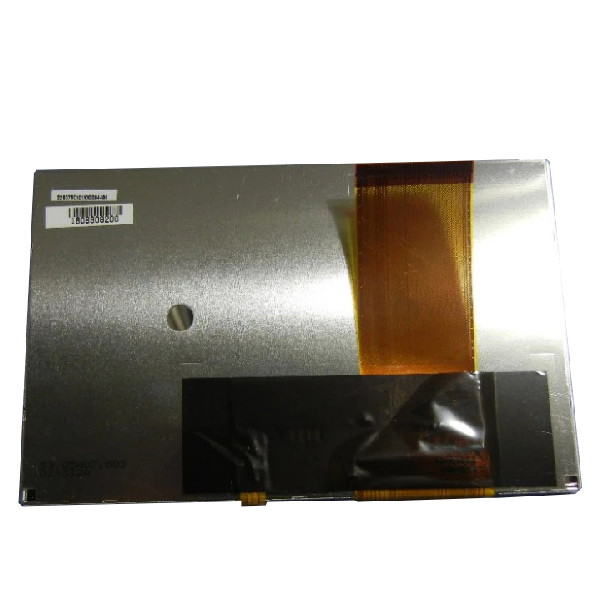

A050VW01 V1 LCD Touch Screen Panel Portable Navigation AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A050VW01 V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | A050VW01 V1 | Diagonal Size: | 5.0 Inch |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 [WVGA] 188PPI | Active Area: | 108(H)×64.8(V) Mm |
| Outline Dim.: | 119.6(H)×76.5(V)×4.54(D) Mm | Bezel Area: | 111.2(H)×67.8(V) Mm |
| Weight: | 57.8g (Typ.) | Designed For: | Portable Navigation / MID UMPC / MP3 PMP / Gaming |
| Highlight: | A050VW01 V1 LCD touch screen panel,Portable Navigation AUO LCD Display,MID UMPC AUO LCD Display |
||
Product Description
A050VW01 V1 touch screen panel TFT Module rgb stripe auo lcd display
A050FW03 V4 Product details :
| AUO LCD SCREEN A050VW01 V1 | |
| Panel Brand | AUO |
| Panel Model | A050VW01 V1 |
| Panel Size | 5.0" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 800(RGB)×480(WVGA) 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 108 × 64.8 (H×V) mm |
| Bezel Opening | 111.2 × 67.8 (H×V) mm |
| Outline Size | 119.6 × 76.5 × 5.75 (H×V×D) mm |
| Surface | Matte, Hard coating (3H) |
| Brightness | 480 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmission) |
| Viewing Angle | 60/60/45/55 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 15/20 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M , 50% NTSC |
| Lamp Type | 7S2P WLED , 10K hours, without driver |
| Frequency | 60Hz |
| Panel Weight | 57.8g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 8-bit) , FPC , 50 pins |
| Input Voltage | 3.3 (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C |
| A050VW01 V1 touch screen panel TFT Module rgb stripe auo lcd display | |
A050VW01 V1 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
3.For all the problems Please send us message via and we will solve the problem for you immediatel
A050VW01 V1 Product quality assurance:
Our product is original new , before sending the goods are tested by the engineers , ALL is OK,then they will be sended to the buyer,so you can rest assured to buy in my store.
A050VW01 V1 Shipping and Package :
A050VW01 V1 About the shipping:
The recipient must be full name or company name.We use standard transport EMS DHL, fedex, etc. You can choose the next order. if you want to quickly get parcel. Recommend the use of DHL or by EMS, if you choose the DHL transport. Some remote address DHL needs additional remote address for service. Fees paid by the buyer. Customs clearance fee, if any, shall be borne by the buyers.
After completion of the payment, the goods will be sent 1-3 working days. (part of the product according to the inventory needs more days)
A050VW01 V1 Return/Refund:
1.You have 7 days to contact us and 30 days to return it from the date it was received.If this item is in your possession more than 7 days, it is considered used and we WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.
2.All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number,specific reason for the return, and your po#.
3. we will refund Your FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction . OR, you may choose to have a replacement.
4. we will bear all the shipping cost if the product(s) is (are) not as advertised.
A050VW01 V1 FAQ:
Q: How to order lcd A050VW01 V1 ?
A: We accept the T/T , WESTERN UNION , PAYPAL
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd's quality and lifetime better than that compatible lcd .
Q: Do you accept the sample order A050VW01 V1 ?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
