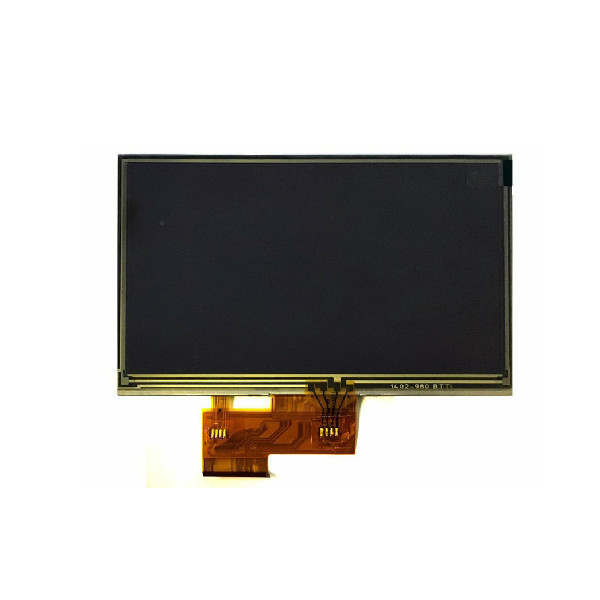

5 Inch A050FW03 V0 LCD Touch Screen Panel 4 wire Resistive Touch AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A050FW03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | A050FW03 V0 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×272, WQVGA, 109PPI | Display Area: | 110.88(W)×62.832(H) Mm |
| Bezel Opening: | 114.7(W)×66.03(H) Mm | Outline Size: | 120.7(W)×75.8(H)×4.45(D) Mm |
| Frequency: | 60Hz | Touch Screen: | 4-wire Resistive Touch |
| Weight: | 75.0g (Typ.) | Application: | Portable Navigation / MP3 PMP |
| High Light: | A050FW03 V0 LCD touch screen Panel,LCD touch screen Panel 60Hz,Resistive Touch AUO LCD Display |
||
Product Description
5 INCH A050FW03 V0 LCD Panel with touch screen rgb stripe auo lcd display
A050FW03 V0 Product details :
| AUO LCD SCREEN A050FW03 V0 | |
| Panel Brand | Innolux |
| Panel Model | A050FW03 V0 |
| Panel Size | 5.0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 480(RGB)×272 [WQVGA] 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 103.68 ×58.752 (H×V)mm |
| Bezel Opening | 114.7 × 66.03 mm (H×V) |
| Outline Size | 120.7 × 75.8 × 4.45 mm (H×V×D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 400 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 70/70/40/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/23 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 54% NTSC |
| Lamp Type | 7S2P WLED , 10K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 75.0g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI , FPC , 67 pins |
| Input Voltage | 3.3V/ (Typ.)(AVDD); 1.7/ (Min.)(DVDD) |
| Environment | Working: -30 ~ 70 °C ; Storage: -30 ~ 80 °C |
| 5 INCH A050FW03 V0 LCD Panel with touch screen rgb stripe auo lcd display | |
A050FW03 V0 Hello, before placing orders:
To avoid the wrong order or buy wrong product, please double check your model and screen size and part number. If you are not sure the purpose compatibility, please send your original specific models (screen) model on the back of the screen and photos sent to us; Usually we will send the LED panel is compatible model, it may be related to your original screen model is not completely the same. But we can make sure it is suitable for the model
Note: product prototype number of links and compatible model random delivery. If you have any special requirements you need to specify the type, please inform us before order. Thank you very much.
A050FW03 V0 Payment:
We accept Escrow ,Credit Card , Paypal,and so on
A050FW03 V0 Shipping and Package :
A050FW03 V0 Shipping:
We Ship to Worldwide
In order to ensure that customers can normally install the use of our products
Before shipment, we will detect this product
Most items will ship within 2-4business days on payment received.
Please provide your correct and detailed address and your phone number to ensure the delivery on time. We are not responsible for wrong or undeliverable address.
If you need to change your address, please contact us before you pay.
Our prices do not include any tariffs or other taxes;
If you have any questions please feel free to contact me
A050FW03 V0 Other policies:
If you need a lot of quantity, please contact us, will give you a favorable price.
We are not responsible for all taxes and import duties
Due to the time difference, all emails will be reply within 24 hours. Thank you for your understanding!
A050FW03 V0 FAQ:
Q: If I place order now,when will you ship the goods of A050FW03 V0 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of A050FW03 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods A050FW03 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
