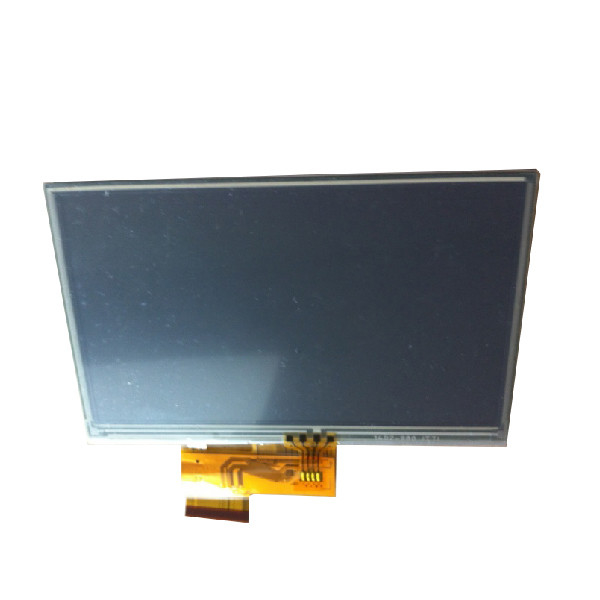

Original 5.0 Inch LCD Touch Screen A050FW02 V5 RGB Stripe AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A050FW02 V5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Panel Model: | A050FW02 V5 | Panel Size: | 5.0" |
|---|---|---|---|
| Resolution: | 480(RGB)×272, WQVGA, 109PPI | Display Area: | 110.88(W)×62.832(H) Mm |
| Bezel Opening: | 114.7(W)×66.03(H) Mm | Outline Size: | 120.7(W)×75.8(H)×4.45(D) Mm |
| Lamp Type: | 7S2P WLED , 10K Hours , Without Driver | Touch Screen: | 4-wire Resistive Touch |
| Panel Weight: | 80.0g | Application: | Portable Navigation / MP3 PMP |
| Highlight: | Portable Navigation LCD touch screen,A050FW02 V5 lcd touch screen,WQVGA AUO LCD Display |
||
Product Description
Original 5.0 inch LCD Screen A050FW02 V5 rgb stripe auo lcd display
A050FW02 V5 Product details :
| AUO LCD SCREEN A050FW02 V5 | |
| Panel Brand | Innolux |
| Panel Model | A050FW02 V5 |
| Panel Size | 5.0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 480(RGB)×272 [WQVGA] 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 103.68 ×58.752 (H×V)mm |
| Bezel Opening | 114.7 × 66.03 mm (H×V) |
| Outline Size | 120.7 × 75.8 × 4.45 mm (H×V×D) |
| Surface | Matte, Hard coating (3H) |
| Brightness | 400 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 70/70/40/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/23 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 54% NTSC |
| Lamp Type | 7S2P WLED , 10K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 80.0g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI , FPC , 67 pins |
| Input Voltage | 3.3V/ (Typ.)(AVDD); 1.7/ (Min.)(DVDD) |
| Environment | Working: -30 ~ 70 °C ; Storage: -30 ~ 80 °C |
| Original 5.0 inch LCD Screen A050FW02 V5 rgb stripe auo lcd display | |
A050FW02 V5 Our advantages:
1.Each screen be tested before shipping and 100% working well.
2.Please test before installation !!!
3.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
4.LCD is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
A050FW02 V5 Shipping and Package :
A050FW02 V5 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
A050FW02 V5 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
A050FW02 V5 Return Policy:
We provide a free 30 DAY WARRANTY for this item.
The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.
Please Note: We do not cover any items for damage after use or as the result of water damage.
Should returns be required:
Step 1 Contact us via message center
Step 2 Provide as much detail as possible about the problem you are having
Step 3 Authorization to return the item will be issued
Step 4 Return the item for the agreed exchange or refund
*All return shipping costs are the responsibility of the buyer.
A050FW02 V5 FAQ:
Q: Can you give me a discount if I need a large quantity of A050FW02 V5 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of A050FW02 V5 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods A050FW02 V5 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
