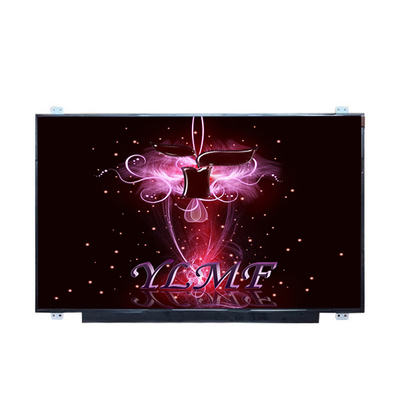

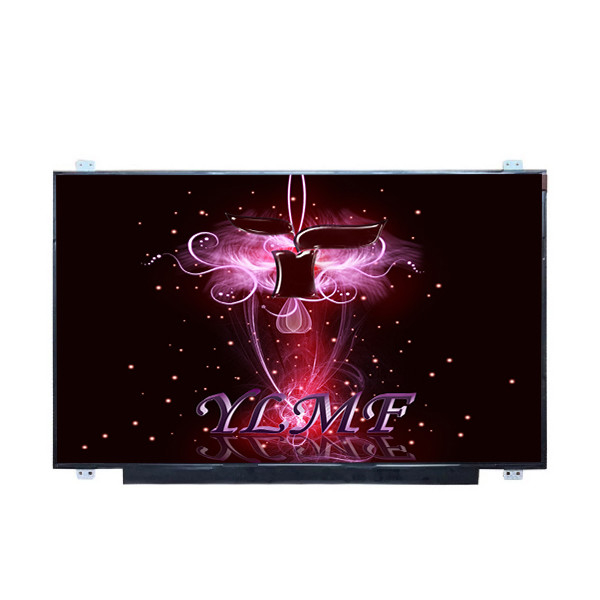

AUO 15.6 Inch Laptop LCD Panel B156HAN04.0 HWBA 40 Pins 1920×1080 FHD 141PPI
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HAN04.0 HWBA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156HAN04.0 HWBA | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080 FHD 141PPI | Active Area: | 344.16(H)×193.59(V) Mm |
| Outline Dim.: | 359.5(W)×223.8(H) ×3.4(D) Mm | Brightness: | 220 Cd/m² (Typ. |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Designed For: | Laptop |
| High Light: | AUO 15.6 inch laptop lcd panel,141PPI 15.6 inch laptop lcd panel,15.6 inch 40 pin laptop screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN04.0 HWBA 40 pins LCD Display
B156HAN04.0 HWBA Product details :
| AUO LCD SCREEN B156HAN04.0 HWBA (AUO40ED) | |
| Panel Brand | AUO |
| Model Name | B156HAN04.0 HWBA (AUO40ED) |
| Diagonal size | 15.6 inch |
| Screen type | a-Si TFT-LCD, LCD module |
| Resolution | 1920(RGB)×1080 FHD 141PPI |
| Pixel arrangement | RGB Vertical Stripe |
| Display size | 344.16(H)×193.59(V) mm |
| Outline Size | 359.5(W)×223.8(H) ×3.4(D) mm |
| Surface treatment | Glare (Haze 0%) |
| Display brightness | 220 cd/m² (Typ.) |
| Contrast | 800: 1 (Typ.) (transmission) |
| Best View on | Symmetry |
| Optical mode | AHVA, normally black display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 25 (Typ.)(Tr+Tf) ms |
| Number of pixels | 262K , 45% NTSC |
| Backlight type | 9S4P WLED , 15K hours , With LED Driver |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Application | Laptop |
| Refresh rate | 60Hz |
| Touch function | Without |
| Interface Type | eDP (2 Lanes), 40 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Application Environment | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HAN04.0 HWBA 40 pins LCD Display | |
B156HAN04.0 HWBA Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
B156HAN04.0 HWBA Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. The customer installs independently and provides the installation tutorial instructions.
4. Our packaging is professionally customized and very safe! Each package will have a fragile label.
5. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
6. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time the goods arrive at the destination).
B156HAN04.0 HWBA Payment and Tax:
1.Alipay is perferred and safety.
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
3.The order will be cancelled beyond 7 business days on unpaid station.
B156HAN04.0 HWBA Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
B156HAN04.0 HWBA FAQ:
Q:Can You declare my order of B156HAN04.0 HWBA to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q:Can I pay my order of B156HAN04.0 HWBA via credit card ?
A:Yes!you can use your credit card through your Paypal account.
Q:Can you give me a discount if I need a large quantity of B156HAN04.0 HWBA ?
A:Of course!If you make a large order, we will give you a discount.
B156HAN04.0 HWBA Shipping and Package :
