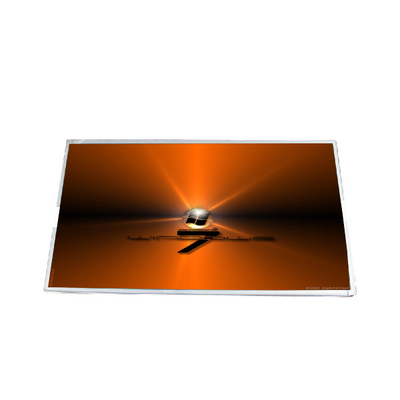

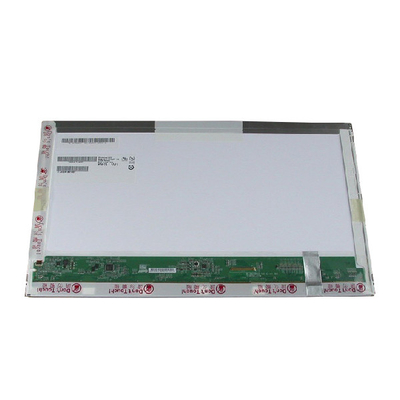

AUO LCD Panel 15.6 Inch B156XW02 V2 HW0A 1366*768 100PPI EDP Terminal 30 Pins
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156XW02 V2 HW0A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156XW02 V2 HW0A | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1366(RGB)×768, WXGA, 100PPI | Active Area: | 344.232 × 193.536 Mm (H×V) |
| Outline Dim.: | 359.3 × 209.5 × 5.5 Mm (H×V×D) | Brightness: | 220 Cd/m² (Typ. |
| Viewing Angle: | 45/45/15/35 (Min.)(CR≥10 | Designed For: | Laptop |
| High Light: | AUO lcd panel 15.6 inch,220 cd/m2 lcd panel 15.6 inch,15.6 inch 30 pin laptop screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156XW02 V2 HW0A 1366*768 100PPI
B156XW02 V2 HW0A Product details :
| AUO LCD SCREEN B156XW02 V2 HW0A | |
| Panel Brand | AUO |
| Panel Model | B156XW02 V2 HW0A |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1366(RGB)×768, WXGA, 100PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.536 mm (H×V) |
| Bezel Opening | 347.95 × 196.94 mm (H×V) |
| Outline Size | 359.3 × 209.5 × 5.5 mm (H×V×D) |
| Surface | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% |
| Brightness | 220 cd/m² (Typ. |
| Contrast Ratio | 500:1 (Typ.) (Transmission) |
| Viewing Angle | 45/45/15/35 (Min.)(CR≥10 |
| Good View at | 6 o'clock |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 6/2 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Used for | Laptop |
| Touch Screen | Without |
| Signal Interface | eDP (2 Lanes) , terminal, 30 pins |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156XW02 V2 HW0A 1366*768 100PPI | |
B156XW02 V2 HW0A Important:
Specific laptop models can come in many sizes and resolutions. Laptop LCD resolution should not beupgraded or downgraded. You must confirm that this screen matches your laptop in size and in resolution before you purchase! No Returns Due To Improper Installation or Incompatibility.
B156XW02 V2 HW0A Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. The customer installs independently and provides the installation tutorial instructions.
4. Our packaging is professionally customized and very safe! Each package will have a fragile label.
5. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
6. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time the goods arrive at the destination).
B156XW02 V2 HW0A Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
B156XW02 V2 HW0A FAQ:
Q: Can I pay my goods B156XW02 V2 HW0A by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How can I trace my order of B156XW02 V2 HW0A ?
A: we will give you tracking number then you can trace your order form website.
Q: Can You declare my order of lcd AUO B156XW02 V2 HW0A at a very low value ?
A: Yes , we can . pls inform us before shipping .
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
