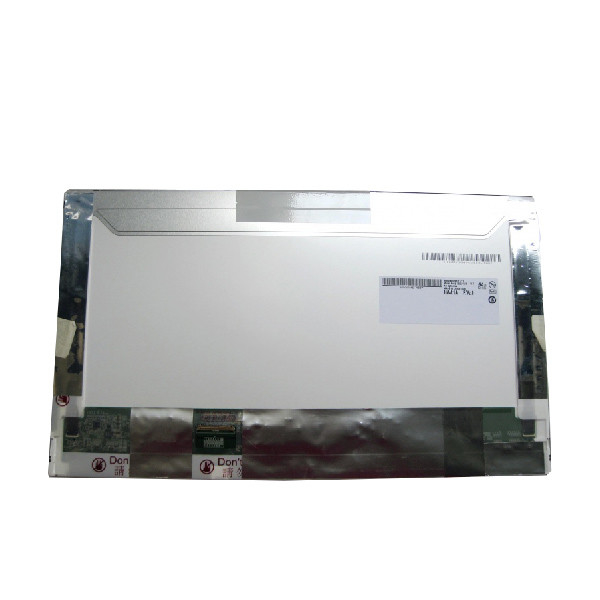

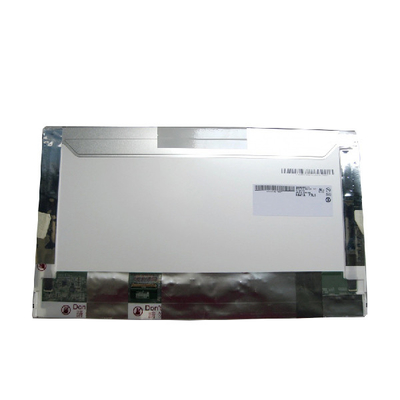

AUO 15.6 Inch Laptop Screen B156HW02 V0 1920*1080 141PPI LVDS 40 Pins Terminal
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156HW02 V0 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD, 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 359.3(W)×209.5(H)×5.7(D) Mm | Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) | Designed For: | Laptop |
| Highlight: | AUO 15.6 inch laptop screen,15.6 inch laptop screen 300 cd/m2,15.6 inch laptop screen 40 pin |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW02 V0 1920*1080 141PPI
B156HW02 V0 Product details :
| AUO LCD SCREEN B156HW02 V0 | |
| Panel Brand | AUO |
| Panel Model | B156HW02 V0 |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.16(W)×196.59(H) mm |
| Outline Size | 359.3(W)×209.5(H)×5.7(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td); ms |
| Best View on | 6 o'clock |
| Display Colors | 262K , 60% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Wedge (PCBA Bent, T≥5.2mm) |
| Application | Laptop |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW02 V0 1920*1080 141PPI | |
B156HW02 V0 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
B156HW02 V0 Our advantages:
1. The LCD screens you purchase are 100% original.
2. Our goods are in stock and shipped within 24 hours.
3. The customer installs independently and provides the installation tutorial instructions.
4. Our packaging is professionally customized and very safe! Each package will have a fragile label.
5. Product grades are available A+ (perfect) and A- (defective/imperfect) to meet various customer needs.
6. We provide professional after-sales service, 24 hours a day for customer service, and provide a 90-day warranty (calculated from the time the goods arrive at the destination).
B156HW02 V0 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
B156HW02 V0 FAQ:
Q: How long will I receive my goods B156HW02 V0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:Can you give me a discount if I need a large quantity of B156HW02 V02 ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can You declare my order of B156HW02 V0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
B156HW02 V0 Shipping and Package :
