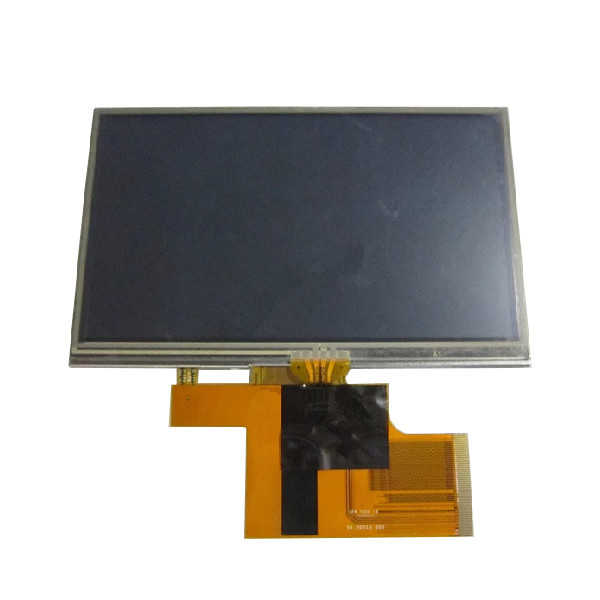

5.0 Inch 480×272 LCD Touch Panel Display A050FW02 V2 50 Pins FPC AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A050FW02 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | A050FW02 V2 | Diagonal Size: | 5.0 Inch |
|---|---|---|---|
| Pixel Format: | 480(RGB)×272 [WQVGA] 109PPI | Active Area: | 110.88(H)×62.832(V) Mm |
| Outline Dim.: | 120.7(H)×75.8(V)×4.45(D) Mm | Bezel Area: | 114.7(H)×66.03(V) Mm |
| Weight: | 75.0g (Typ.) | Designed For: | Portable Navigation / MP3 PMP |
| Support Color: | 16.7M 54% NTSC | Touchscreen: | 4-wire Resistive Touch |
| High Light: | 480×272 LCD Touch Panel Display,LCD Touch Panel Display A050FW02 V2,50 pins FPC AUO LCD Display |
||
Product Description
5.0 inch 480×272 LCD Panel A050FW02 V2 rgb stripe auo lcd display
A050FW02 V2 Product details :
| AUO LCD SCREEN A050FW02 V2 | |
| Panel Brand | AUO |
| Panel Model | A050FW02 V2 |
| Panel Size | 5.0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 480(RGB)×272 [WQVGA] 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 103.68 ×58.752 (H×V)mm |
| Bezel Opening | 114.7 × 66.03 mm (H×V) |
| Outline Size | 120.7 × 75.8 × 4.45 mm (H×V×D) |
| Brightness | 400 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 70/70/40/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/23 (Typ.)(Tr/Td) ms |
| Display Colors | 16.7M 54% NTSC |
| Lamp Type | 7S2P WLED , 10K hours, no driver |
| Touch Panel | 4-wire Resistive Touch |
| Panel Weight | 75.0g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins FPC |
| Input Voltage | 3.3V (Typ.)(VDD) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| 5.0 inch 480×272 LCD Panel A050FW02 V2 rgb stripe auo lcd display | |
A050FW02 V2 Notice:
Prior to the order, please check and confirm whehter the screen size, resolution, backlight type, Interface type and location can be applied to your LCD Screen, if you have no idea, please ask us freely.
Please give us your correct contact details so that you can receive the items as early as possible.
If you want us to wirte a low price to avoid the custom tax, please advise us, and you should afford the risk yourself.
A050FW02 V2 Shipping and Package :
A050FW02 V2 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
A050FW02 V2 Guarantee And Return:
1. We offer guarantee for all our products.
2. Buyers will bear the shipping cost of returning defective or non-defective items.
3. Returned items must be in good condition like the one we send, not damaged.
4. Returned items are subject to approval by us, must be in the original box as shipped.
5. Damaged items received must be reported within 2 days.
6. All non-seller error returns,shipping and handling charges are non-refundable.
A050FW02 V2 Contact us:
1. If there is any problem, please feel free to contact us , we will reply to you within 2 business day. (does not include holidays)
2. Working hours: from Monday to Saturday
3. If you do not receive a reply within 1-3 business days, please check your email or my messages in case your email provider has an excessive spam filter block or my emails. Add us to your contact and send us an email again.
4. Bulk orders are accepted, you will be offered lower prices for bulk orders.
A050FW02 V2 FAQ:
Q: If I place order now,when will you ship the goods of A050FW02 V2 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of A050FW02 V2 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of A050FW02 V2 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of A050FW02 V2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
