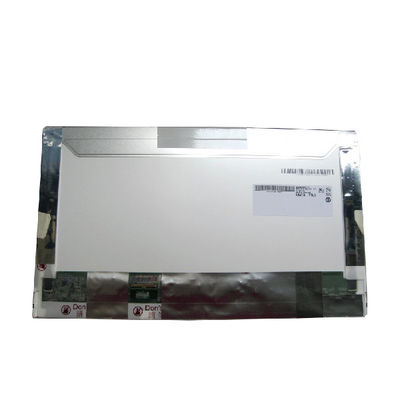

AUO B156HW01 V7 15.6 Inch Laptop LCD Panel 1920*1080 141PPI 40 Pins 270cd/M2
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | B156HW01 V7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | B156HW01 V7 | Diagonal Size: | 15.6 Inch |
|---|---|---|---|
| Pixel Format: | 1920(RGB)×1080, FHD, 141PPI | Active Area: | 344.16(W)×193.59(H) Mm |
| Outline Dim.: | 359.3(W)×209.5(H)×5.7(D) Mm | Brightness: | 270 Cd/m² (Typ.) |
| Viewing Angle: | 70/70/60/60 (Typ.) (CR≥10) | Display Colors: | 262K , 95% NTSC |
| High Light: | RGB 15.6 inch laptop lcd panel,15.6 inch laptop lcd panel 270cd/M2,AUO 15.6 inch 40 pin laptop screen |
||
Product Description
AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V7 1920*1080 141PPI
B156HW01 V7 Product details :
| AUO LCD SCREEN B156HW01 V7 | |
| Panel Brand | AUO |
| Panel Model | B156HW01 V7 |
| Panel Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | 347.16(W)×196.59(H) mm |
| Outline Size | 359.3(W)×209.5(H)×5.7(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H), Reflection 5.0% |
| Brightness | 270 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Viewing Angle | 70/70/60/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td); ms |
| Display Colors | 262K , 95% NTSC |
| Lamp Type | WLED , 10K hours, with LED driver |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Form Style | Laptop |
| Designed For | 60Hz |
| Touch Screen | Without |
| Signal Interface | LVDS (2 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| AUO Vertical Stripe 15.6 Inch LCD Pane B156HW01 V7 1920*1080 141PPI | |
B156HW01 V7 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
B156HW01 V7 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
B156HW01 V7 About Shipping:
- Please provide the full name of consignee and detailed address for shipping.
- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.
- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.
B156HW01 V7 FAQ:
Q: Can I pay my goods B156HW01 V7 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods B156HW01 V7 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: What happen if the B156HW01 V7 I receive can't work ?
A: The AUO B156HW01 V7 will be tested strictly before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Can you give me a discount if I need a large quantity of B156HW01 V7 ?
A: Of course!If you make a large order, we will give you a discount.
B156HW01 V7 Shipping and Package :
