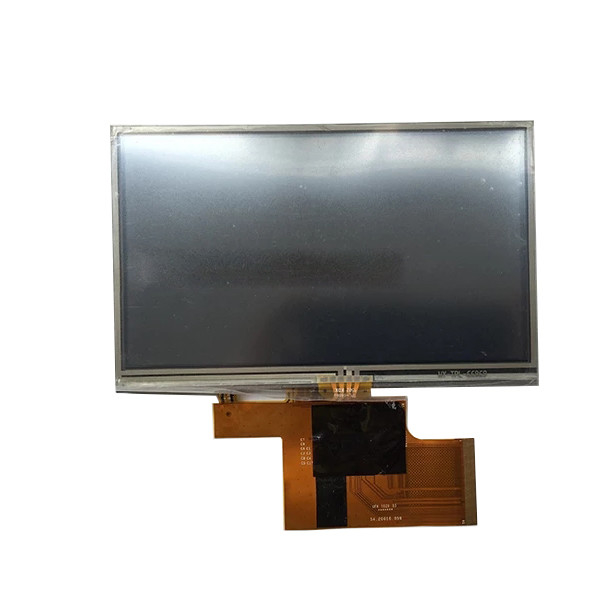

A050FW02 V0 Small LCD Touch Screen 5.0 Inch 480×272 FPC 67 Pins AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A050FW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | A050FW02 V0 | Diagonal Size: | 5.0 Inch |
|---|---|---|---|
| Pixel Format: | 480(RGB)×272 [WQVGA] 109PPI | Active Area: | 110.88(H)×62.832(V) Mm |
| Outline Dim.: | 120.7(H)×75.8(V)×4.45(D) Mm | Bezel Area: | 114.7(H)×66.03(V) Mm |
| Weight: | 80.0g (Typ.) | Designed For: | Portable Navigation / MP3 PMP |
| Color Depth: | 262K 54% NTSC | Touchscreen: | 4-wire Resistive Touch |
| High Light: | A050FW02 V0 Small LCD Touch Screen,FPC small lcd touch screen,67 Pins AUO LCD Display |
||
Product Description
A050FW02 V0 5.0 inch 480×272 rgb stripe auo lcd display
A050FW02 V0 Product details :
| AUO LCD SCREEN A050FW02 V0 | |
| Panel Brand | Innolux |
| Panel Model | A050FW02 V0 |
| Panel Size | 5.0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 480(RGB)×272 [WQVGA] 109PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 103.68 ×58.752 (H×V)mm |
| Bezel Opening | 114.7 × 66.03 mm (H×V) |
| Outline Size | 120.7 × 75.8 × 4.45 mm (H×V×D) |
| Brightness | 400 (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) [Transmission] |
| Viewing Angle | 70/70/40/60 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/23 (Typ.)(Tr/Td) ms |
| Display Colors | 262K , 54% NTSC |
| Lamp Type | 7S2P WLED , 10K hours, no driver |
| Frequency | 60Hz |
| Panel Weight | 80.0g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI , FPC , 67 pins |
| Input Voltage | 3.3V/ (Typ.)(AVDD); 1.7/ (Min.)(DVDD) |
| Environment | Storage temperature: -30 ~ 80 °C Operating temperature: -20 ~ 70 °C ; Vibration resistance: 2.9G (28.4 m/s²) |
| A050FW02 V0 5.0 inch 480×272 rgb stripe auo lcd display | |
A050FW02 V0 Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps:
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
A050FW02 V0 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
A050FW02 V0 Shipping and Package :
A050FW02 V0 Shippment:
Usually we will prepare and ship your goods within 1 working day.
Pls check if your item is in good condition upon receipt of it.
A050FW02 V0 Delivery time:
----Via Express: Generally 7-10 working days.
----Via Air Mail: Generally 30-50working days.
A050FW02 V0 Return:
Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period
Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase
A050FW02 V0 FAQ:
Q: Can you give me a discount if I need a large quantity of A050FW02 V0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of A050FW02 V0 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of A050FW02 V0 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of A050FW02 V0 ?
A: Of course!If you make a large order, we will give you a discount.
