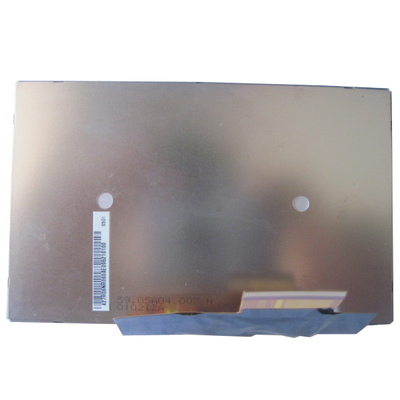

Name: A050FW01 V7 5.0 Inch LCD Touch Panel Display Automotive AUO LCD Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: A050FW01 V7
Availability: InStock

Brand Name:	AUO
Model Number:	A050FW01 V7
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Model:

A050FW01 V7

Diagonal Size:

5.0 Inch

Pixel Format:

480(RGB)×272 [WQVGA] 111PPI

Active Area:

109.44(H)×62.016(V) Mm

Outline Dim.:

120.7(H)×75.8(V)×4.61(D) Mm

Bezel Area:

113.78(H)×65.43(V) Mm

Weight:

78.6g (Typ.)

Designed For:

Automotive Display

Refresh Rate:

60Hz

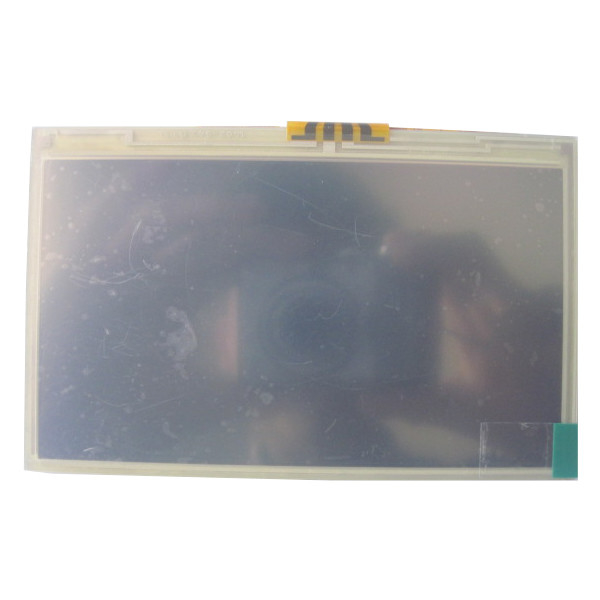

Touchscreen:

4-wire Resistive Touch

Supply Ability:

100000 Unit/Units per Month

Highlight:

A050FW01 V7 LCD Touch Panel Display

111PPI LCD Touch Panel Display

Automotive AUO LCD Display

Product Description

Original A050FW01 V7 5.0 inch 480(RGB)×272 rgb stripe auo lcd display

A050FW01 V7 Product details :

AUO LCD SCREEN A050FW01 V7
Panel Brand	AUO
Model Name	A050FW01 V7
screen size	5.0 inch
Types of	a-Si TFT-LCD, LCD module
Resolution	480(RGB)×272 WQVGA 111PPI
Pixel	RGB vertical bar
Display size	109.44(Horizontal)×62.016(Vertical) mm
physical	120.7(horizontal)×75.8(vertical) ×4.61(thick) mm
Visual size	113.78(Horizontal)×65.43(Vertical) mm
Brightness	400 cd/m² (Typ.)
Contrast	300:1 (Typ.) (transmission)
Best angle	6 o'clock
Optical mode	TN, normally white display, transmissive
Viewing angle	70/70/40/60 (Typ.)(CR≥10)
responding	7/23 (Typ.)(Tr/Td)
Number of	16.7M
Backlight type	WLED [7S2P], no driver
Screen weight	78.6g (Typ.)
Apply to	camera
Refresh rate	60Hz
signal system	Parallel RGB (1 ch, 8-bit), 50 pins, FPC
Supply voltage	3.3/5.0V (Typ.)(VDD/VDC)
Maximum	Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C
Original A050FW01 V7 5.0 inch 480(RGB)×272 rgb stripe auo lcd display

A050FW01 V7 Helpful Information:

- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.

- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.

- Please confirm it with us before buying if you need 100% new products only.

- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.

A050FW01 V7 Friendly Reminder :

- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.

- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.

- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.

A050FW01 V7 Shipping and Package :
A050FW01 V7 5.0 Inch LCD Touch Panel Display Automotive AUO LCD Display 0

A050FW01 V7 About Shipping:

- Please provide the full name of consignee and detailed address for shipping.

- We only ship according to the delivery address in the order, if you want to change the shipping address, please contact me in advance.

- NOTICE: The buyer is responsible for all additional customs fees, brokerage fees, customs duties and taxes imported into your country.

A050FW01 V7 FAQ:

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: If I place order now,when will you ship the goods of A050FW01 V7 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of A050FW01 V7 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods A050FW01 V7 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
