LCD Screen Display Panel
>

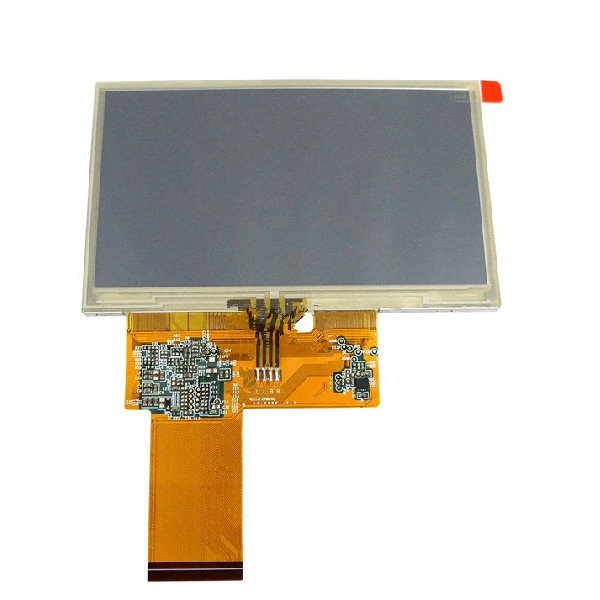

7S2P WLED LCD Screen Panel A050FW01 V5 RGB Stripe AUO Touch Screen

7S2P WLED LCD Screen Panel A050FW01 V5 RGB Stripe AUO Touch Screen

Brand Name: AUO
Model Number: A050FW01 V5
MOQ: 10pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
CHINA
Model:
A050FW01 V5
Diagonal Size:
5.0 Inch
Pixel Format:
480(RGB)×272 [WQVGA] 111PPI
Active Area:
109.44(H)×62.016(V) Mm
Outline Dim.:
120.7(H)×75.8(V)×3.41(D) Mm
Bezel Area:
113.78(H)×65.43(V) Mm
Light Source:
WLED [7S2P] , W/O Driver
Designed For:
Portable Navigation / MP3 PMP
Supply Ability:
100000 Unit/Units per Month
Highlight:

7S2P WLED LCD Screen Panel

,

A050FW01 V5 AUO Touch Screen

,

RGB Stripe AUO Touch Screen

Product Description

Brand New Original A050FW01 V5 rgb stripe auo lcd display



A050FW01 V5 Product details :



AUO LCD SCREEN A050FW01 V5
Panel Brand Innolux
Panel Model A050FW01 V5
Panel Size 5.0
Panel Type a-Si TFT-LCD , LCM
Resolution 480(RGB)×272 [WQVGA] 111PPI
Pixel Format RGB Vertical Stripe
Display Area 103.68 ×58.752 (H×V)mm
Bezel Opening 113.78(H)×65.43(Vl) mm
Outline Size 120.7 (H) × 75.8 (V) × 3.41 (T) mm
Brightness 500 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (Transmission)
Viewing Angle 70/70/40/60 (Typ.) (CR≥10)
Display Mode TN, Normally White, Transmissive
Response Time 7/23 (Typ.)(Tr/Td) ms
Display Colors 16.7M
Lamp Type WLED [5S1P+6S1P] , 10K hours, no driver
Frequency 60Hz
Touch Screen Without
Panel Weight 69.5g (Typ.)
Signal Interface 50 pins Parallel RGB (1 ch, 8-bit) , FPC
Input Voltage 3.3(Typ.)(VDD/VDDIO)
Environment Operating temperature: -20 ~ 70 °C ; Storage temperature: -30 ~ 80 °C
Brand New Original A050FW01 V5 rgb stripe auo lcd display



A050FW01 V5 Helpful Information:



To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
