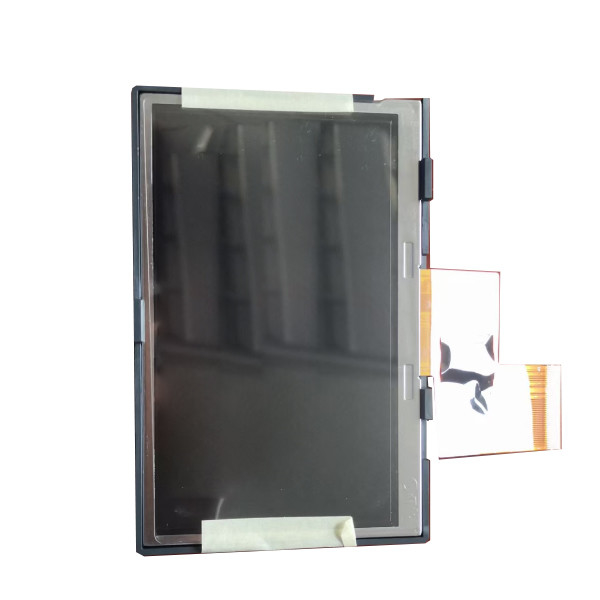

5.0 Inch 480×272 LCD Touch Screen Panel A050FW01 V4 Car Navigation AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A050FW01 V4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | A050FW01 V4 | Screen Size: | 5.0 Inch |
|---|---|---|---|
| Pixel Number: | 480(RGB)×272 (WQVGA) 111PPI | Active Area(mm): | 109.44 × 62.016 (H×V) |
| Outline(mm): | 120.7 × 75.8 × 4.61 (H×V×D) | Bezel Area(mm): | 113.78 × 65.43 (H×V) |
| Mass: | 78.6g (Typ.) | Used For: | Portable Navigation / MP3 PMP |
| Refresh Rate: | 60Hz | Touchscreen: | 4-wire Resistive Touch |
| High Light: | 50 pins LCD touch screen panel,LCD touch screen panel A050FW01 V4,Car Navigation AUO LCD Display |
||
Product Description
5.0 inch 480×272 LCD touch screen panel A050FW01 V4 rgb stripe auo lcd display
A050FW01 V4 Product details :
| AUO LCD SCREEN A050FW01 V4 | |
| Panel Brand | AUO |
| Model Name | A050FW01 V4 |
| screen size | 5.0 inch |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 480(RGB)×272 WQVGA 111PPI |
| Pixel | RGB vertical bar |
| Display size | 109.44(Horizontal)×62.016(Vertical) mm |
| physical | 120.7(horizontal)×75.8(vertical) ×4.61(thick) mm |
| Visual size | 113.78(Horizontal)×65.43(Vertical) mm |
| Brightness | 400 cd/m² (Typ.) |
| Contrast | 300:1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 55/55/45/60 (Typ.)(CR≥10) |
| responding | 15/20 (Typ.)(Tr/Td) ms |
| Number of | 16.7M |
| Backlight type | WLED [7S2P], no driver |
| Screen weight | 78.6g (Typ.) |
| Apply to | camera |
| Refresh rate | 60Hz |
| Touch function | 4-wire resistive touch screen |
| signal system | 50 pins Parallel RGB (1 ch, 8-bit), FPC |
| Supply voltage | 3.3V (Typ.)(VDD) |
| Maximum | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C |
| 5.0 inch 480×272 LCD touch screen panel A050FW01 V4 rgb stripe auo lcd display | |
A050FW01 V4 Payment:
ESCROW, TT, Western Union or Paypal is available for you.
We will continue to update more payment methods.
When you submit your order you can choose the payment method that suits you.
A050FW01 V4 Shipping and Package :
A050FW01 V4 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 10-25 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift,the shipping address as according to your paypal address.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
A050FW01 V4 NOTE:
1. Please confirm the model number of your LCD Screen when you order our screen.So as not to buy the wrong, can not be used normally.
2.Before you confirming the screen can not work perfectly, please do not use the adhesive to install our screen to your equipment,if the screen paste the glue, we can not accept you to return it and ask for the payment refunding.
3. The problem you may meet
a.broken screen→ make an unpacking video → contact us and send the video
b. un-working screen→ make a testing video → contact us and send the video
4. If the screen has any problem, please contact us immediately, we will handle it for you soon, thanks for understanding.Looking forward to the long-term cooperation with you!Happy shopping!
A050FW01 V4 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can You declare my order of A050FW01 V4 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How to make payment of A050FW01 V4 ?
A: We accept T/T , Paypal , western union .
Q: Can you give me a discount if I need a large quantity of A050FW01 V4 ?
A: Of course!If you make a large order, we will give you a discount.
