5.0 Inch A050FW01 V2 LCD Screen Panel Hard Coating AUO LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | A050FW01 V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | A050FW01 V2 | Diagonal Size: | 5.0 Inch |
|---|---|---|---|
| Pixel Format: | 480(RGB)×272 [WQVGA] 109PPI | Active Area: | 110.88(H)×62.832(V) Mm |
| Outline Dim.: | 120.7(H)×75.8(V)×4.61(D) Mm | Bezel Area: | 113.48(H)×65.43(V) Mm |
| Weight: | 78.6g (Typ.) | Designed For: | Portable Navigation / MP3 PMP |
| High Light: | A050FW01 V2 LCD Screen Panel,400cd/m2 LCD Screen Panel,Hard coating AUO LCD Display |
||
Product Description

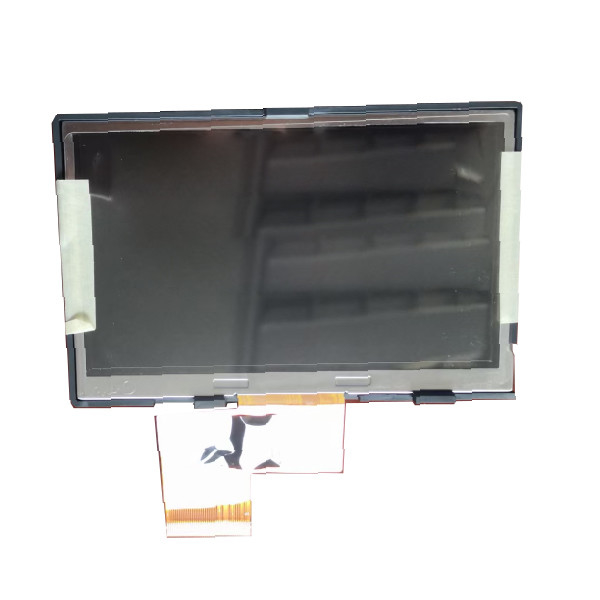

A050FW01 V2 LCD Screen Panel rgb stripe auo lcd display
A050FW01 V2 Product details :
| AUO LCD Screen A050FW01 V2 | |
| Panel Brand | AUO |
| Panel Model | A050FW01 V2 |
| screen size | 5.0inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 480(RGB)×272 WQVGA 109PPI |
| Pixel configuration | RGB vertical bars |
| Display size | 110.88× 62.832 mm (H×V) |
| visible size | 113.48× 65.43 mm (H×V) |
| physical dimension | 120.7 × 75.8 × 4.61 mm (H×V×D) |
| surface | Hard coating (3H) |
| Brightness (cd/m²) | 400 (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) [Transmission] |
| Viewing Angle | 60/60/40/60 (Typ.) (CR≥10) |
| responding speed | 15/20 (Typ.)(Tr/Td) ms |
| Optical mode | TN, Normally White, Transmissive |
| Number of colors | 16.7M |
| Backlight type | WLED [7S2P] , no driver |
| refresh rate | 60Hz |
| screen weight | 78.6g (Typ.) |
| signal system | 50 pins Parallel RGB (1 ch, 8-bit) , FPC |
| Supply voltage | 3.3V (Typ.) |
| maximum rating | Operating temperature: 0 ~ 60 °C ; Storage temperature: -10 ~ 70 °C |
| A050FW01 V2 LCD Screen Panel rgb stripe auo lcd display | |
A050FW01 V2 Quality:
We have a wealth of experience in Tablet PC and mobile phone maintenance in China.All the Replacement Screen will be checked and tested carefully by our experienced quality control team before shipment.100% work well.
A050FW01 V2 Advantages about us:
1. The LCD screens you buy are all 100% original authentic.
2. Our goods inventory is very sufficient and shipped within 48 hours.
3. Our packaging is professionally customized and very safe! Each package will have a fragile label
4. Product grade provides A grade (perfect)
5. We provide professional after-sales service, serve customers 24 hours a day, and provide a 90-day warranty (calculated from the time the goods arrive at the destination)
A050FW01 V2 Shipping and Package :
A050FW01 V2 Packing:
the parcel will be packed well with bubble bag + strong box.Do not worry.
A050FW01 V2 Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
A050FW01 V2 Warranty:
1.- 90days' warranty..
2.-If the item is defective upon receipt, it should be within 7 days from the date of receipt for exchange a new one (Buyer should return all original and undamaged items under re-saleable condition)
3.-We supply free repairing service within one year of purchase. For the first 1 month, we will pay one way shipping cost( from us to your location); After 1 month of purchase, the buyer need to pay two ways of shipping cost.
4.- One we get the returned items, we will send the replaced ones back as soon as possible.
5.-Our warranty does not extend to any products that are physically damaged or under un-normal operating conditions as a result of misuse or improper installation on the parts
A050FW01 V2 FAQ:
Q: How to order AUO lcd panel A050FW01 V2 ?
A: We accept the T/T , Western union , paypal .
Q: How long the warranty of A050FW01 V2 ?
A: 90days.
Q: What happen if the A050FW01 V2 I received can't work ?
A: Our AUO A050FW01 V2 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: can you declared low price of my 5.0 inch TFT-LCD A050FW01 V2 when shipping?
A: Yes , please inform us the value you want .
