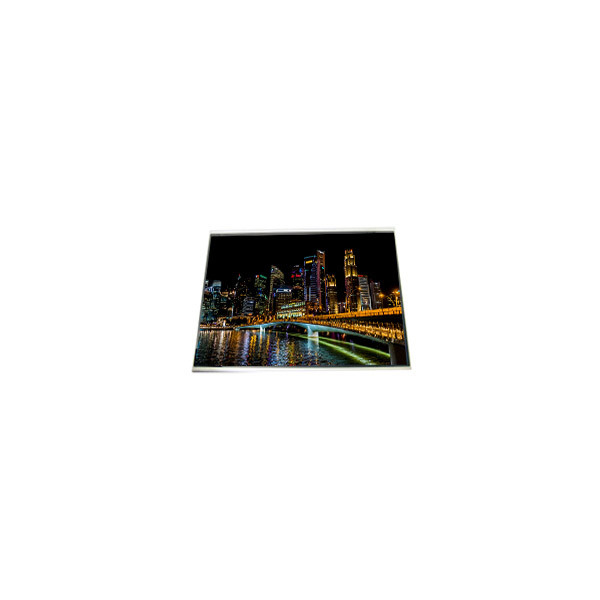

5.5 inch HSD055FHW3-D00 LCD Screen Panel 720*1280 LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HannStar |
| Model Number: | HSD055FHW3-D00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HSD055FHW3-D00 | Diagonal Size: | 5.5" |
|---|---|---|---|
| Pixel Format: | 720(RGB)×1280, WXGA 268PPI | Active Area: | 68.04(W)×120.96(H) Mm |
| Outline Dim.: | 70.44(H)×128.06(V)×0.4(D) Mm | Luminance: | 0 Cd/m² |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Designed For: | Mobile Phone |
| Touchscreen: | On-Cell Touch | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Highlight: | A040FL01 V1 LCD Screen Panel,Resistive Touch LCD Screen Panel,280 cd/m2 AUO LCD Display |
||
Product Description
5.5 inch HSD055FHW3-D00 LCD Screen Panel 720*1280 LCD Display
HSD055FHW3-D00 Product details :
| Brand | HannStar |
| Model P/N | HSD055FHW3-D00 |
| Diagonal Size | 5.5" |
| Panel Type | a-Si TFT-LCD, CELL, Full Cell |
| Resolution | 720(RGB)×1280, WXGA 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 68.04(W)×120.96(H) mm |
| Bezel Opening | - |
| Outline Dim. | 70.44(H)×128.06(V)×0.4(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | IPS Pro, Normally Black, Transmissive |
| Plate Thickness | 0.20+0.20 mm |
| Transmittance | 3.2% (Typ.)(with Polarizer) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch |
| D-IC Detail | COG Suggest HX8394-A01, HX8394-D, RM68200, OTM1283A, OTM1284A, NT35521, NT35521S |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
HSD055FHW3-D00 Product description:
* 100% test before shipment, we are not professional photographers, so the photos are not very exquisite, all the pictures displayed on the Internet are taken with real samples, so please make sure your photos are the same as ours! Please check this photo carefully to make sure it is what you need. If you are not sure, please contact us directly and send your photo or no. Tell us about your equipment. We are not responsible for the wrong bid. . Thank you for your understanding! Thank you
* Please leave your exact full name (especially the buyer from RU) & phone number. When you fill in your information as a buyer so that couriers can deliver your project timely and easily.
* Please pay attention to the color you need before you buy. If the color is not marked, we will send it at random. If you are not satisfied after receiving the goods, you can return and exchange the goods, but the buyer must pay the round trip freight, please read the product description carefully, thank you!
HSD055FHW3-D00 Warning:
* installation guide is not included. We are not responsible for any damage caused by installing this attachment. Please make sure you know how to install it before bidding. Thank you for your understanding!
* We can guarantee that the one you receive is compatible with your tablet,
* Please do not buy if you do not accept an A + compatible touch screen digital converter with different flexible cable numbers because our title / description / photo status is not available on the market, thank you!
1. Each screen is tested before shipment & 100% work; repair / replace old, damaged, cracked, damaged touch screens.
2. After receiving the goods, do not tear open the film, do not stick the glue on the back, first test the machine, remove the old screen, insert the new screen, check whether the sensitivity is normal. Please be sure to try this machine first. Make sure the quality is fine. Reinstall. Easy to burn the motherboard and touch screen, we are not responsible.
3. Before the connection test, the power supply must be disconnected, otherwise it is easy to burn the motherboard and touch screen, if not work, we will not be responsible.
HSD055FHW3-D00 Payment:
1.- Please make sure your payment account is available before you bid the item.
2.-All payments should be cleared within 7days after you receive the item.
If you really have difficulty in paying the item, please contact us firstly, we will help to solve it.
3.- If you have any special request about the details of item, please leave a note in your order.
HSD055FHW3-D00 Shipping and Package :
HSD055FHW3-D00 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
HSD055FHW3-D00 Contact US:
You are valued buyers, if you have any question. We try our best to reply to your emails as soon as possible. however, due to high volume of daily incoming emails and time zone difference, we may not be able to replay your emails immediately. We try to give you reply within 24hours
HSD055FHW3-D00 FAQ:
Q: How do you ship my goods HSD055FHW3-D00 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of HSD055FHW3-D00 ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel HSD055FHW3-D00 at a very low value ?
A: Yes , we can . pls inform us before shipping .
