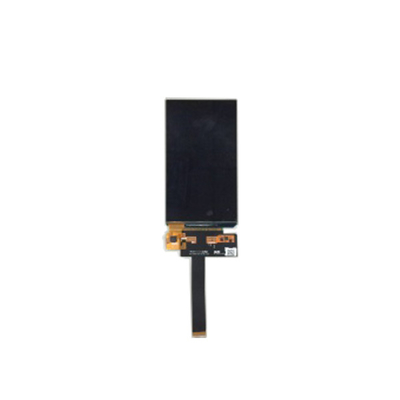

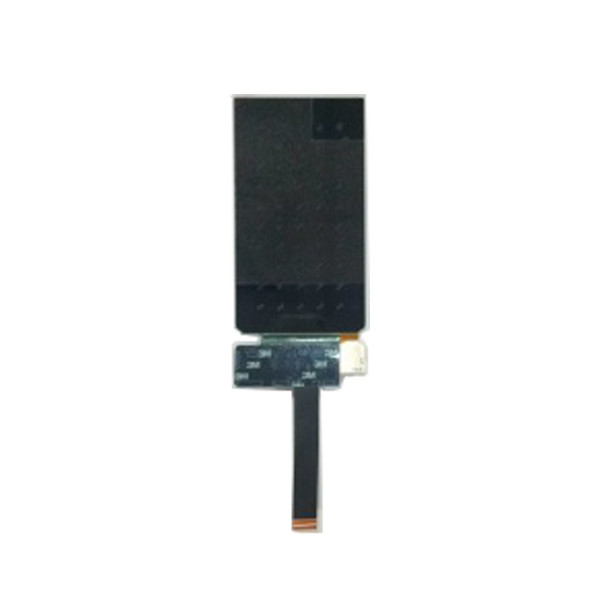

5.0 Inch H497TLB01.0 CELL LCD Screen Panel 720*1280 OLED Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | H497TLB01.0 CELL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | H497TLB01.0 CELL | Screen Size: | 5.0" |
|---|---|---|---|
| Panel Type: | AM-OLED, OLED, COG | Active Area(mm): | 61.92(W)×110.08(H) Mm |
| Outline(mm): | 65.92(W)×118.64(H)×0.87(D) Mm | Viewing Angle: | 80/80/80/80 (Min.)(CR≥1600) |
| Contrast Ratio: | 10000:1 (Min.) (TM) | Used For: | Mobile Phone |
| Driver IC: | COGBuilt-in RM69052 | Signal Interface: | MIPI |
| Highlight: | Digital Camera AUO LCD Display,A036QN02 V2 LCD Screen Panel,3.6 inch AUO LCD Display |
||
Product Description
5.0 Inch H497TLB01.0 CELL LCD Screen Panel 720*1280 OLED Display
H497TLB01.0 CELL Product details :
| Brand | AUO |
| Model P/N | H497TLB01.0 CELL |
| Diagonal Size | 5.0" |
| Panel Type | AM-OLED, OLED, COG |
| Resolution | 720(RGB)×1280, WXGA 295PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 61.92(W)×110.08(H) mm |
| Bezel Opening | - |
| Outline Size | 65.92(W)×118.64(H)×0.87(D) mm |
| Brightness | 350 cd/m² (Typ.) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥1600) |
| Best View on | Symmetry |
| Display Colors | 16.7M 100%NTSC |
| Frequency | 60Hz |
| Weight | TBD |
| Surface | - |
| Contrast Ratio | 10000:1 (Min.) (TM) |
| Display Mode | - |
| Response Time | 1.0 (Max.) |
| Lamp Type | self |
| Touch Screen | On-Cell Touch |
| Application | Mobile Phone |
| Driver IC | COGBuilt-in RM69052 |
| Signal Interface | MIPI |
| Environment | Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C |
H497TLB01.0 CELL Matters needing attention:
Before buying, please double check that the goods you need are the same as our products.
This is not an easy job for someone who has no technical skills with Disassembling or Assembling , so only purchase this item if you know how to install.
We will use good packaging, After receiving the parcel, please check the parcel in the appearance.
After receiving the goods, please do not install, testing the goods first.
Due to different production batches, Connector cable/Code number may sometimes with Image and description not bethe same,We can only guarantee that the product you receive compatible with yourt. If you can't accept it, please don't buy it. Thank you.
H497TLB01.0 CELL Shipping and Package :
H497TLB01.0 CELL Shipping:
All items will be shipped within 48 business hours upon receipt of payment (Except Saturdays and Sundays and holidays).
7-15 working days to USA,Ship by USPS with track number.
14-22 business days to UK Australia,Canada.
18-25 business days to Greece,Spain,Poland,Norway.
18-25 business days to Germany,Filand.Sweden,Malta.
20-25 business days to France, Czech. most of Europe.
30-40 business days to other countries(Brazil and Russia).
This is the normally around ship time.if your country strict customs and will cause delay.
We are not responsible for any custom delay or tax. Import taxes are not included in the item price or shipping fee.
H497TLB01.0 CELL Warranty is void if:
1.LCD Display or touch is broken by man-made reasons.
2. Glue or stick the screen to the device before test it work.
3. Water-in to the screen.
4. Self-repair or disassemble without permission by our side.
5. Warranty label is removed. To protect the screen, please power off the phone before replacement.
To lower the risk of damage, we advise you to repair it at your local repair store.
H497TLB01.0 CELL FAQ:
Q: How long will I receive my goods H497TLB01.0 CELL ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of H497TLB01.0 CELL ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of H497TLB01.0 CELL ?
A:Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
