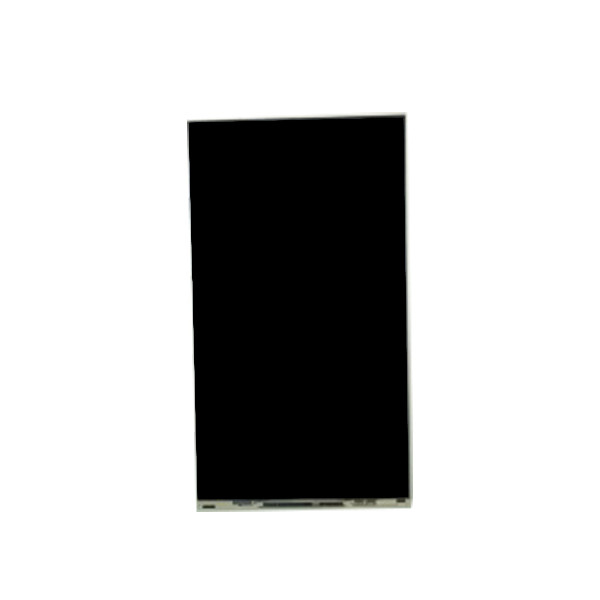

6.0 inch 1080*1920 LCD Screen Panel H598DAN03.0 LCD Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | AUO |
| Model Number: | H598DAN03.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | H598DAN03.0 | Diagonal Size: | 6.0" |
|---|---|---|---|
| Pixel Format: | 1080(RGB)×1920, FHD 368PPI | Active Area: | 74.52(W)×132.48(H) Mm |
| Outline Dim.: | 76.12(W)×138.17(H)×0.3(D) Mm | Luminance: | 0 Cd/m² |
| View Direction: | Symmetry | Designed For: | Mobile Phone |
| D-IC Detail: | COG Suggest NT35695, OTM1906A, S6D1FA2, HX8399B, NT35596, OTM1901A, HX8399C, S6DFA0, R63350, ILI7807B/C, RM67200 | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Highlight: | 3.6 inch LCD Screen Display Panel,A036QN02 V1 LCD Screen Display Panel,QVGA AUO LCD Display |
||
Product Description
6.0 inch 1080*1920 LCD Screen Panel H598DAN03.0 LCD Display
H598DAN03.0 Product details :
| Brand | AUO |
| Model P/N | H598DAN03.0 |
| Diagonal Size | 6.0" |
| Panel Type | LTPS TFT-LCD, CELL, Full Cell |
| Resolution | 1080(RGB)×1920, FHD 368PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 74.52(W)×132.48(H) mm |
| Bezel Opening | - |
| Outline Dim. | 76.12(W)×138.17(H)×0.3(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 35 (Max.)(Tr+Tf) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | AHVA, Normally Black, Transmissive |
| Plate Thickness | 0.15+0.15 mm |
| Transmittance | 5.2% (Typ.)(with APCF) |
| Support Color | 16.7M 70%NTSC |
| Light Source | No B/L |
| Weight | 8.50g (Typ.) |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COG Suggest NT35695, OTM1906A, S6D1FA2, HX8399B, NT35596, OTM1901A, HX8399C, S6DFA0, R63350, ILI7807B/C, RM67200 |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
H598DAN03.0 Buyer Notice:
1. We are not responsible for any customs or import duties.
2.We will send the compatible one instead if the original one out of stock.which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model
H598DAN03.0 Features:
High quality products and competitive prices
Efficient work,Keep in touch with you at all times
Pay attention to after-sales, always solve problems for you
H598DAN03.0 Payment:
1. we accept Alipay,west Union,TT.All major credt cards are accepted through secure payment processor ESCROW.
2.Payment must be made within 3 days of order.
3. If you can't checkout immediately after auction close,please wait for a few minutes and retry.
H598DAN03.0 Shipping and Package :
H598DAN03.0 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
H598DAN03.0 FAQ:
Q: Can You declare my order of H598DAN03.0 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of H598DAN03.0 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of H598DAN03.0 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods H598DAN03.0 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
